W815P Mini Lathe Package complete with W810 2″ dia. x 3 Jaw lever scroll chuck

£249.99 Inc. VAT

SKU: W815P

Out of stock

Free Delivery On This Item


W815P mini lathe package

SKU: W815P Categories: ,


YouTube video

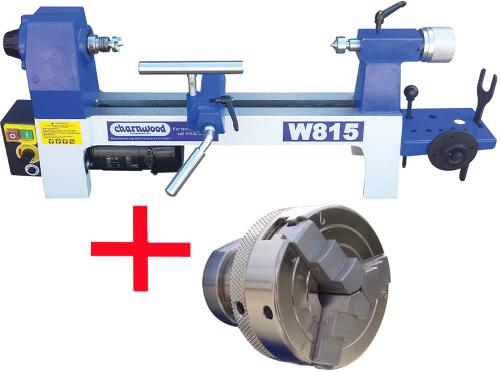

W815P Mini Woodturning Lathe, this package comes complete with W810 2″ dia x 3 jaw lever scroll chuck, Lathe & Chuck Package Deal – Save £10
Package Consists of;

  • W815 Mini Lathe
  • W810 3 Jaw Chuck

W815 Mini Woodturning Lathe: A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed.
The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use.
Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The cam lock banjo design is easy to use, and when coupled with the round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bars.
We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go.

Supplied with four prong drive centre, revolving tail centre, 150mm (6″) tool rest cross bar with 12mm diameter stem, 75mm (3″) diameter faceplate, 1.9m power cable and UK 3 pin plug.


Distance between centres 330mm (13″)
Distance over bed 200mm (8″)
Motor (carbon brush) 250w
Speeds 750 – 3200rpm
Spindle thread size 1″ x 8tpi
Head and tailstock tapers 1MT
Dimensions (WxDxH) 690mm x 220mm x 310mm
Weight 20kg
Assembly Time Required 10 Minutes
Rating Hobby
Product Guarantee 5 Years

W810 3 Jaw Scroll Chuck: A light weight mini lathe chuck ideal for lathes with smaller motors.

Fitted with 3 stepped jaws to give a powerful grip on smaller work pieces. The jaws are adjusted using two levers, which are supplied as standard.

Charnwood W810 Chuck Specification

Chuck Body Diameter 50mm
Standard Jaw Expands from 8mm to 70mm
Standard Jaw Contracts 40mm to 3mm
Weight 450g
  • Extra carriage charges may apply to Scottish Highlands & Islands, please enquire.
