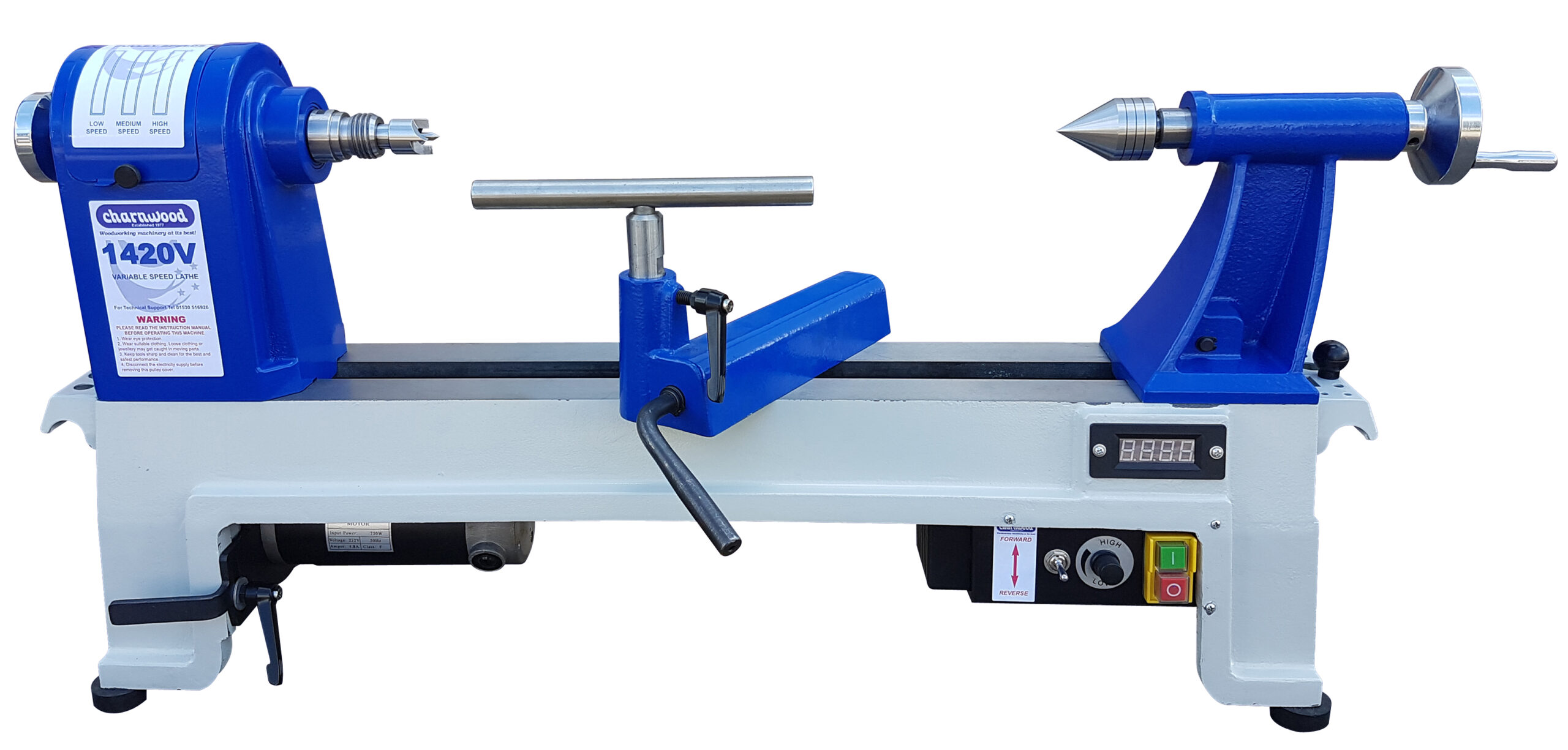

1420VP Heavy Duty Bench Lathe 14″ x 20″ 750watt 1hp motor + VIPER3R Scroll chuck

£687.99 Inc. VAT

SKU: 1420VP

Out of stock

Free Delivery On This Item

BRIEF DESCRIPTION

SKU: 1420VP Categories: ,

Description

Package Deal – Save £20

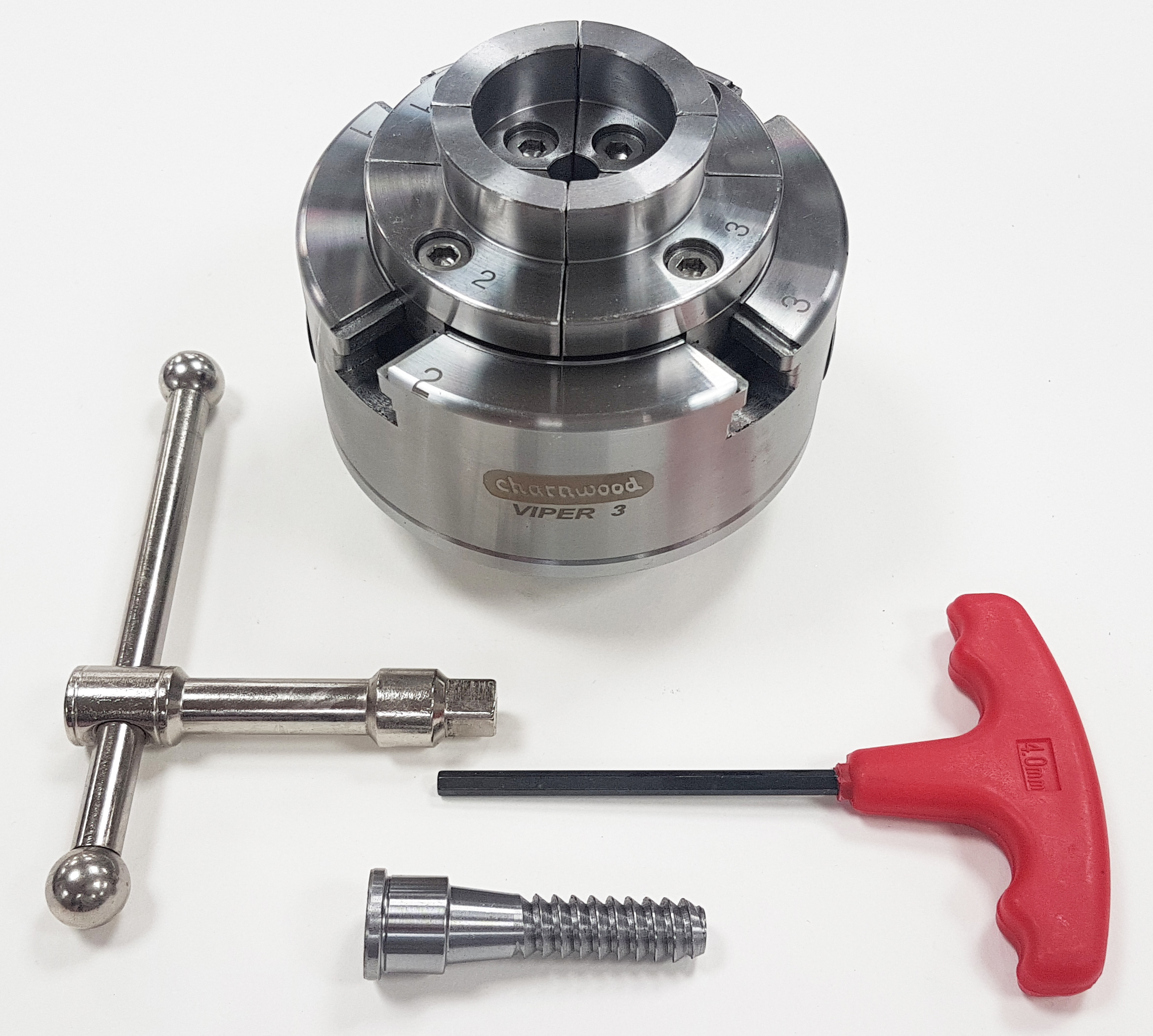

Package consists of : 1420V Lathe & VIPER3R Chuck

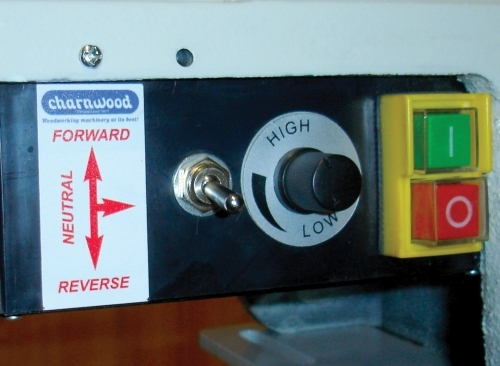

  • Electronic Variable Speed Control
  • Digital Speed Read Out
  • Reverse Direction
  • Powerful & Quiet 750w (1hp) Motor
  • High Quality Drive and Tail Centres
  • Cam Action Tool Rest Banjo
  • Steel Tool Rest Bar

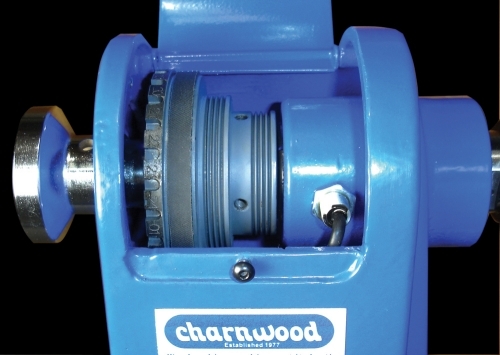

  • Built In 24 Position Indexing
  • Hollow head and tail stock

With full cast iron construction this bench lathe is 40% heavier and more stable than your average bench lathe.

Using a large 1hp motor allows the electronics to achieve a lowest speed of only 250rpm, with enough torque to be useful. The actual spindle speed is shown on a clear digital display.

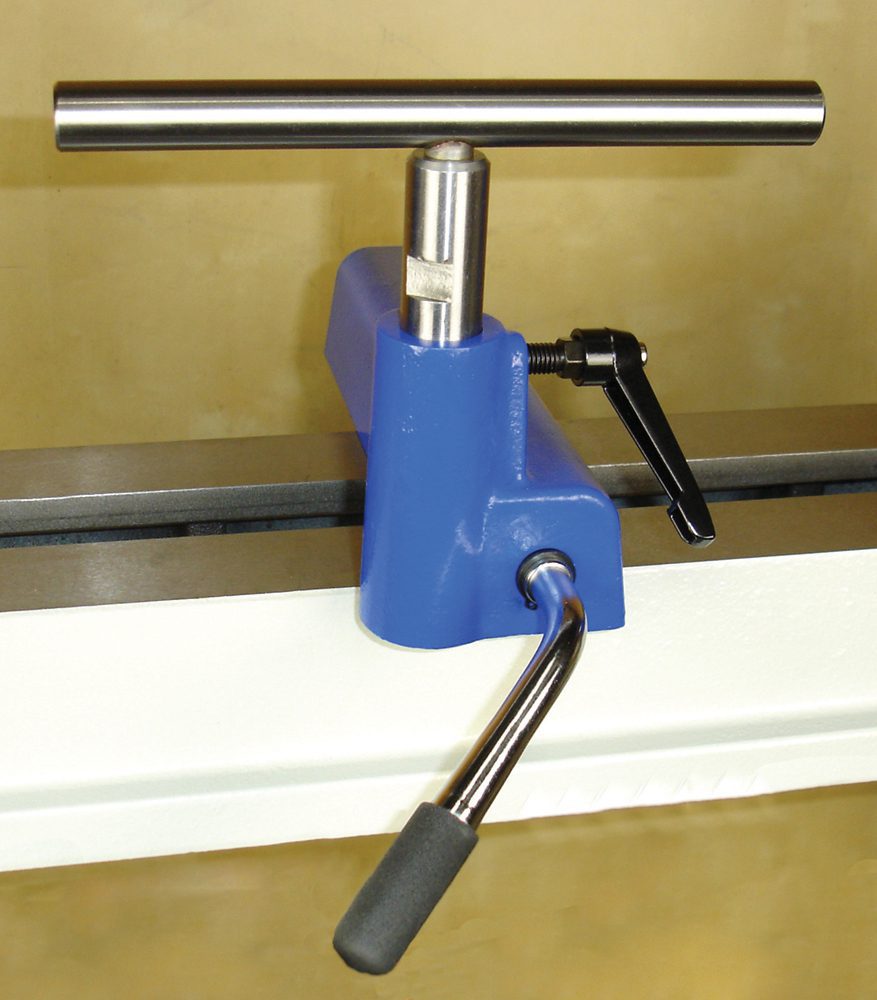

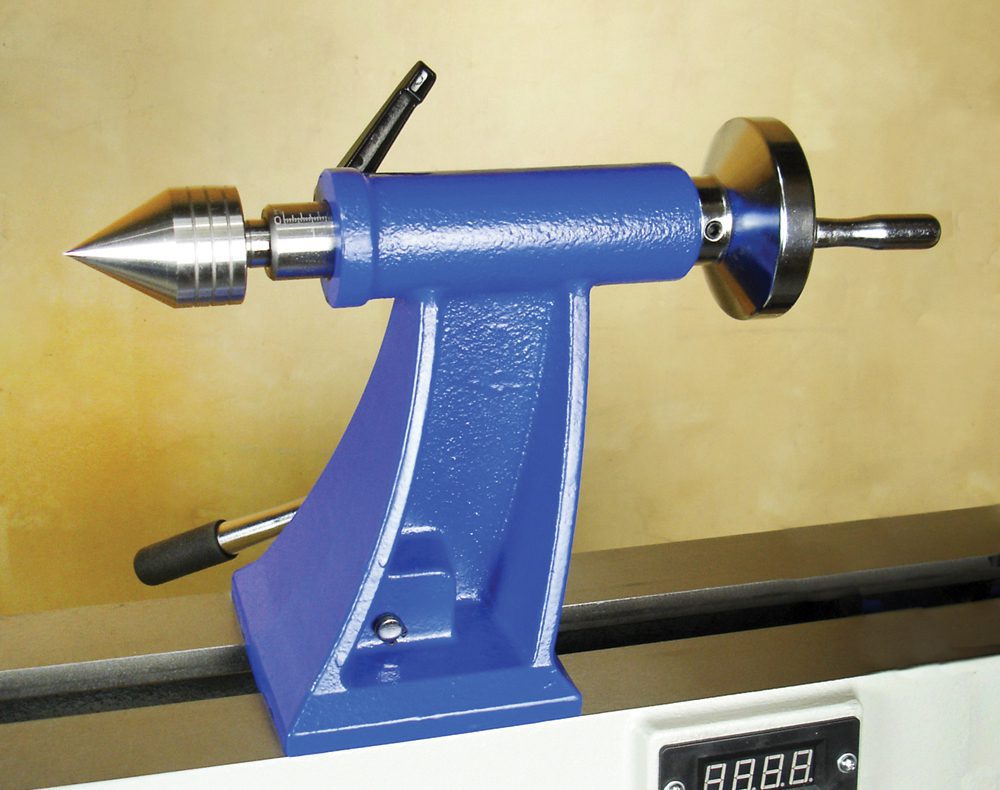

The tool rest and tailstock both slide smoothly along the bed and are securely locked with a large cam action lever.

The tool rest itself is a round steel bar with optional lengths and shapes available, courtesy of Robert Sorby.

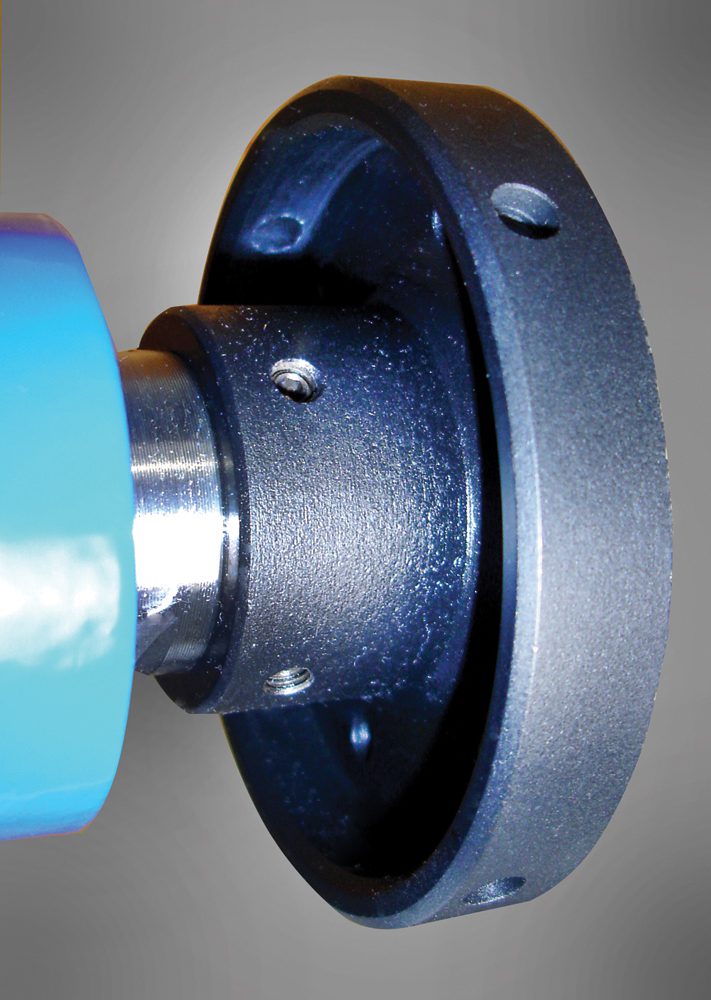

Supplied with drive centre, tail centre, 100mm diameter faceplate, knock out bar, adjustable rubber feet, 1.9m power cable and UK 3 pin plug.

Charnwood 1420V Specification

Max. spindle length (without centres) 500mm (20″)
Max. spindle length (with centres fitted) 430mm (17″)
Distance over bed (Max. bowl diameter) 350mm (14″)
Distance over tool rest (Max. spindle diameter) 250mm (10″)
Tool rest length 150mm (6″)
Tool rest stem diameter 25mm
Motor (DC carbon brush) 750w (1hp), 240v
Speed range 250 – 3550rpm
Spindle thread size M33 x 3.5 (Din800)
Spindle tapers MT2
No. of indexing positions 24 (every 15 degrees)
Hollow headstock diameter 10mm
Hollow tailstock diameter 8mm
Dimensions (WxDxH) 950 x 370 x 500mm
Weight 57kg
Assembly Time Required 10 Minutes
Rating Hobby
Product Guarantee 5 Years

Optional Floor stand Available.



Extra carriage charges may apply to Scottish Highlands, please enquire.
