SIP 01731 10″ Quick Lock Machine Vice
£223.90 Inc. VAT
SKU: 01731BRIEF DESCRIPTION
The SIP 01731 10″ Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication. It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.
Description
SIP 01731 10″ Quick Lock Machine Vice
The SIP 01731 10″ Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.
It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
KEY FEATURES
- Heavy-duty 10″ machine vice with grey cast iron body and tempered steel jaws
- Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
- Boosts efficiency for set-up and changeover in busy production environments
- Slotted base allows secure fixing to the drill press table for added stability
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
- Perfect for use in professional metalwork and fabrication workshops
Full Specification
The SIP 01731 10″ Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.
It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: small castings, brackets and flanges. Suitable for pillar drill drilling, milling, grinding and light to medium-duty work.
What’s in the box?: 1x SIP 10″ Quick Lock Machine Vice.
HEAVY-DUTY 10″ MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS
- High-quality machine vice with 10″ jaw opening and 25kN clamping force for secure fixing of workpieces in a variety of positions.

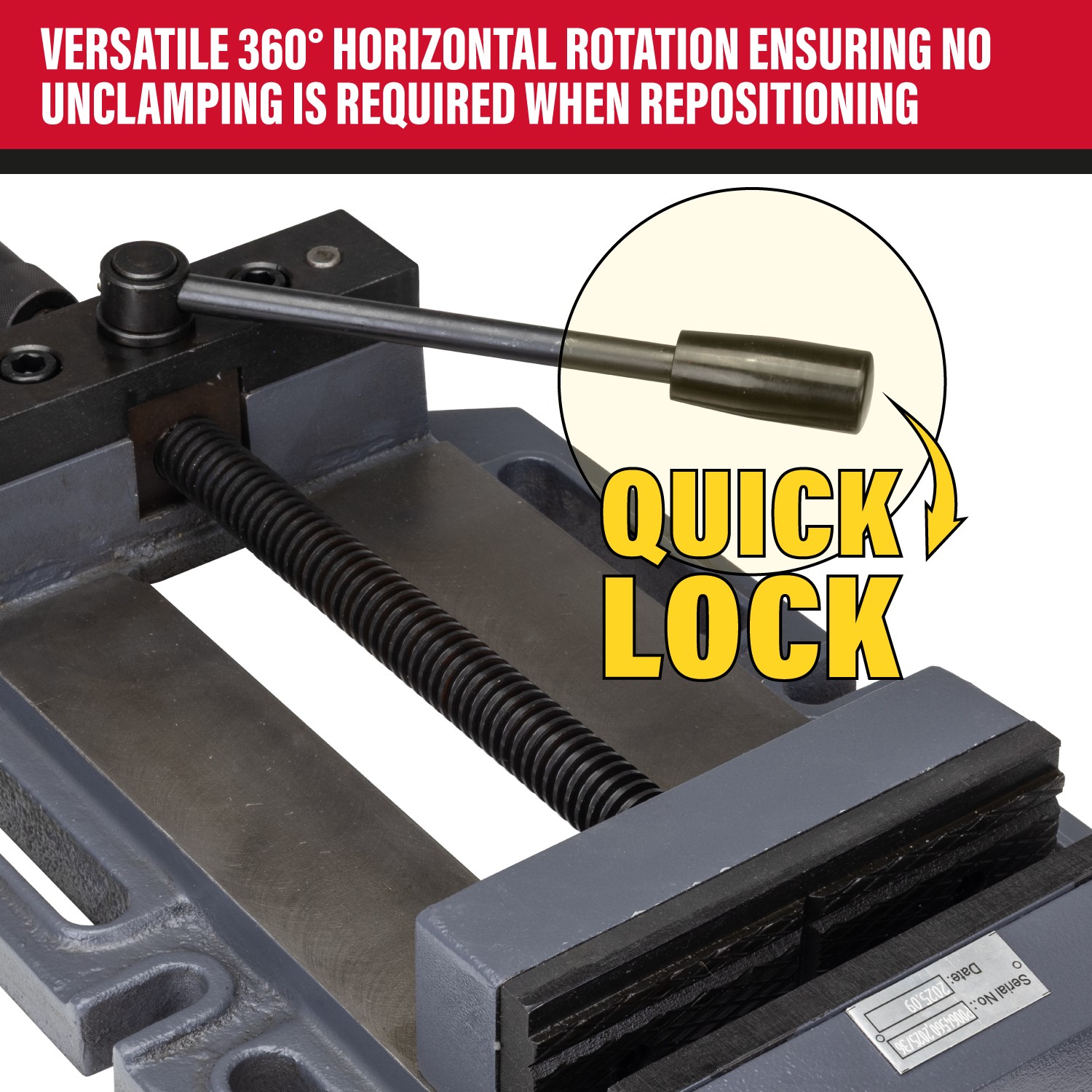

- Quick Lock functionality offers speedy clamping and unclamping that allows the vice jaw to be quickly slid into position against the workpiece.
- Built with a robust grey cast iron machine vice body, plus quenched and tempered structural steel jaws for outstanding durability and secure clamping.
- The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.
COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE
-
- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill
Technical Information
| ITEM NO. | 01731 |
| Jaw Width: | 7″ (180mm) |
| Jaw Opening: | 10″ (260mm) |
| Jaw Depth: | 2.16″ (55mm) |
| Clamping Force: | 25kN |
| Vice Height: | 3.89″ (99mm) |
| Base Type: | Fixed |
| Base Size: | 21″ (535mm) x 13.25″ (335mm) |
| Composition: | Grey cast iron (body), quenched/tempered structural steel (jaws) |
| Mounting Hole Size: | 15mm |
| Accuracy / Parallelism: | 0.05mm / 100mm |
| Net Weight: | 32kg |
| Gross Weight: | 43kg |
| Product Dimensions: | 335(H) x 535(W) x 135mm(D) |
| Packaged Dimensions: | 320(H) x 540(W) x 160mm(D) |
