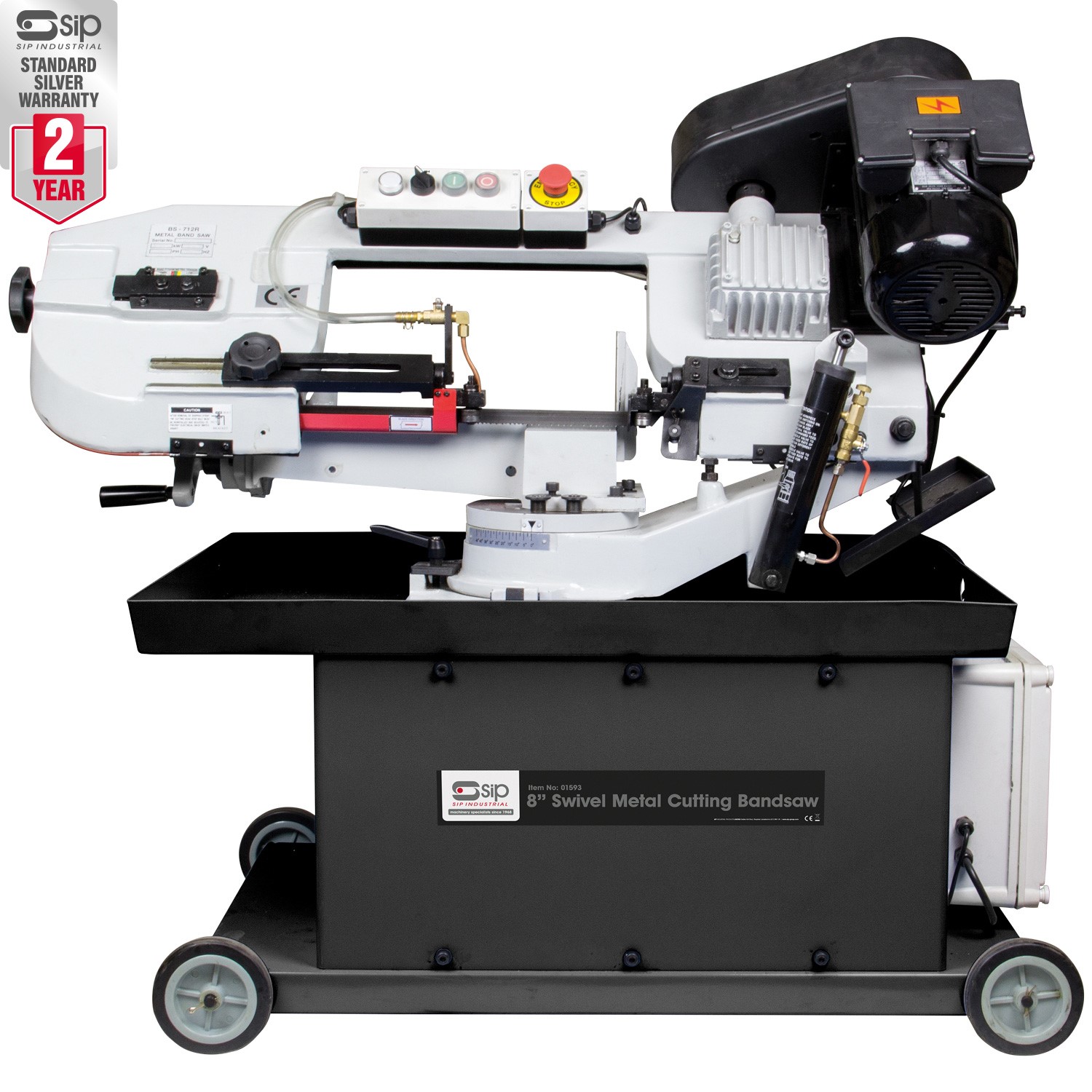

SIP 01593 8″ (200mm) Swivel Metal Cutting Bandsaw 230volt/13amp
£1,975.90 Inc. VAT
SKU: SIP01593BRIEF DESCRIPTION
The SIP 01593 12″ Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
Description
8″ (200mm) 01593 SIP Swivel Metal Cutting Bandsaw 1-phase 230volt.
The SIP 01593 12″ Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube, and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass, and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use, and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
- Powerful 1.1kw (1.5) induction motor
- 230volt/13amp supply
- 4 Speeds
- Cutting Capacity @0 degrees 178mm (round), 178 x 210mm (box)
- Cutting Capacity @45 degrees 127mm (round), 85 c 140mm (box)
- Adjustable vice for cutting mitre angles between 0 & 45 degrees
- Cast iron bow for reduced vibration and accuracy
- Blade length 2362mm
- Limit switch to stop the machine when cutting is complete
- Built-in coolant system for efficient cutting and enabling prolonged saw blade life
- Weight 192kg.
Full Specification
The SIP 8″ Professional Swivel Metal Bandsaw utilises a range of heavy-duty features that ensure numerous benefits suited for trade and professional-grade applications, including a 4-speed belt-driven gearbox perfect for varying materials and thicknesses.
An ultra heavy-duty cast iron swivel bow ensures reduced vibration, increased accuracy, and quick angle adjustments which lead to higher quality cutting and increased ease-of-use for the operator.
- Heavy-duty motor provides powerful performance and durability
- 4-speed belt-driven gearbox perfect for varying material types and thicknesses
- Heavy-duty cast iron swivel bow for reduced vibration, high accuracy, and quick angle adjustments
- Adjustable hydraulic ram dampener for smooth cutting descent, control, and increased blade performance
- Integrated coolant system extends blade life and cools the cutting area
- Built-in 24v control circuit safety feature and limit switch
- Designed for trade and professional-grade applications
- Supplied with heavy-duty bi-metal vari-pitch blade
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. | 01593 |
| Input Supply: | 230v (13A) |
| Motor Power: | 1.5hp (1.1kW) |
| Operating Speed: | 4 speeds |
| Speed Range: | 22 / 33 / 45 / 65mtr/min |
| Blade Size: | 2362mm x 0.9mm x 19mm |
| Max. Cutting Capacity: | 00°: 178mm x 210mm (Box) 45°: 85mm x 140mm (Box) 00°: Ø 178mm (Round Tube) 45°: Ø 127mm (Round Tube) |
| Net Weight: | 170.00kg |
| Gross Weight: | 191.50kg |
| Product Dimensions: | |
| Packaged Dimensions | 1140(H) x 1290(W) x 715mm(D) |
| ITEM NO. | 07625 |
| Input Supply: | 230v (13A) |
| Motor Power: | 370w (0.49hp) S2 30min 250w (0.33hp) S1 |
| Wheel Speed: | 2980rpm |
| Wheel Diameter: | Ø 6″ (150mm) |
| Wheel Width | 3/4″ (20mm) |
| Bore Size: | 1/2″ (13mm) |
| Wire Wheel: | Yes |
| NVR Switch: | Yes |
| Net Weight: | 6.29kg |
| Gross Weight: | 6.29kg |
| Product Dimensions: | |
| Packaged Dimensions: | 280(H) x 460(W) x 315mm(D) |
