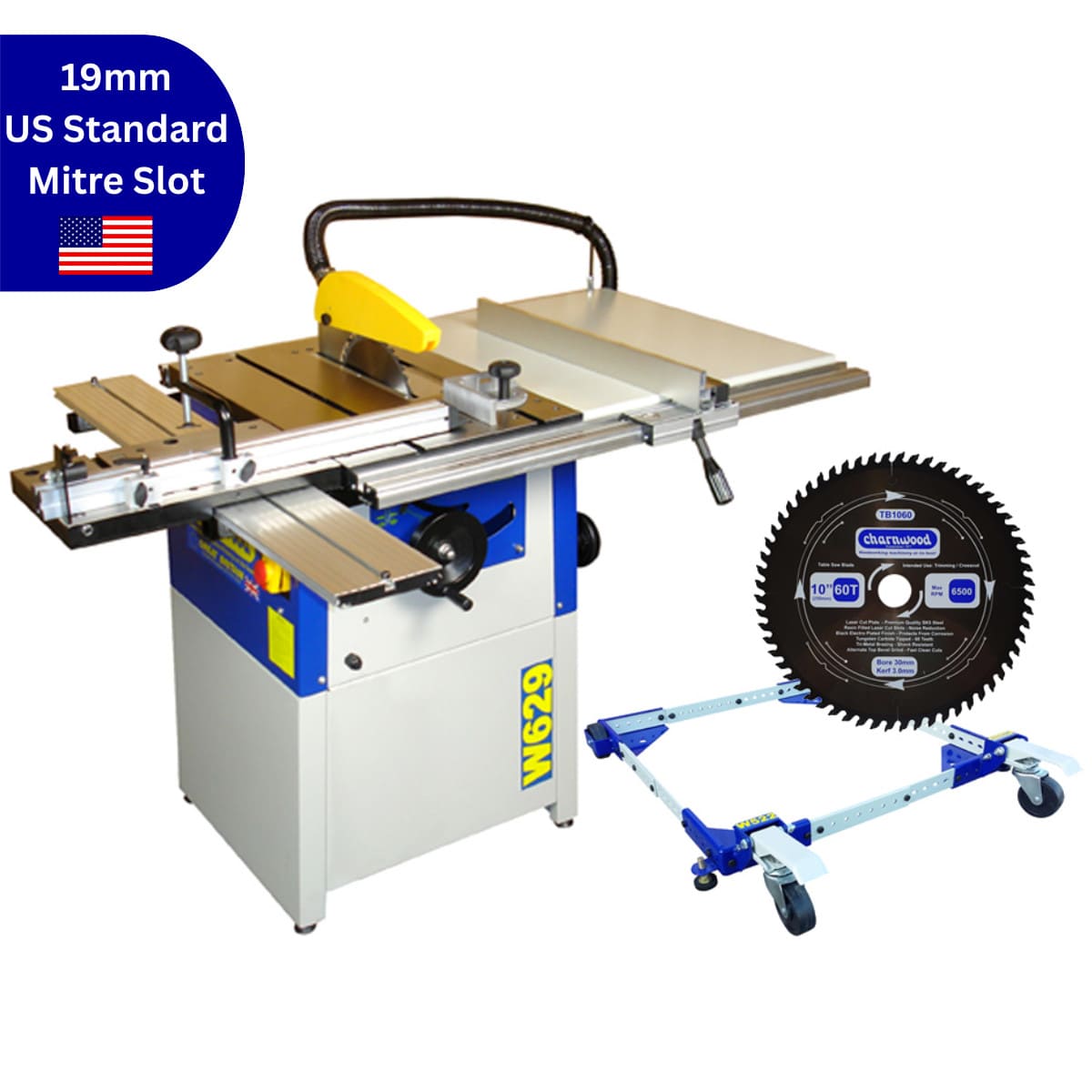

W629P Charnwood Table Saw Package with Wheel Kit and Low Noise Blade 230volt

Package Deal: Save £50.00

Package Includes:
W629: 10″ Cast Iron Table Saw
W522: Wheel Kit
TB1060: 60 Tooth TCT Low Noise Blade

W629 10″ Table Saw: Our best selling table saw model. The cutting capacities are big enough for any hobby workshop, providing a level of accuracy only normally found on industrial machinery, with a compact foot print suited to the average sized workshop.

The quiet running induction motor turns the blade via a drive belt which means the blade is mounted onto a dedicated shaft. Expect greatly reduced noise and increased accuracy. Far superior to any gearbox type system found on most hobby level machines.

Blade height and blade angle are controlled using 2 separate hand wheels. The front handle adjusts the height of the blade, 1 clockwise rotation lowers the blade by 2mm. The side hand wheel adjusts the angle of the blade, anywhere from 90 degrees to 45 degrees with a locking level to ensure it does not creep. There is a large scale on the front of the cabinet to read the current angle off.

The rip fence slides smoothly along an aluminium rail. A single locking lever sets the fence at the desired width, anywhere up to the huge capacity of 730mm (28″).  There is a sight line looking down onto a scale measured in millimeters. The scale has 2 sets of numbers depending on whether the guide fence is set in the high or low position. For general working the higher fence face is used, but for cutting very narrow strips the fence is rotated to the low position to give clearance right up to the side of the blade.

For quick crosscut jobs there is a sliding mitre fence supplied which runs in one of the T-slots, located on each side of the saw blade. The block is a one-piece metal diecast and has 2 perpendicular faces which can be rotated by 45 degrees each way. The front face has a slot allowing a home made sacrificial fence to be added.

For very accurate crosscutting, the highlight of the saw is the sliding table. It glides along a guide rail running on 4 bearings. When pulled into the forward position it can load a 500mm (20″) board onto the table. There is a vertical work clamp to hold the board whilst making the cut. The angle of the back fence can be adjusted through a range of 45 degrees, with a positive stop to bring it back to 90 degrees. A flip over length stop completes the setup for making repeat cuts.

The hose kit supplied collects dust from the overhead saw guard and from underneath the blade meeting at a single 100mm diameter hose connection point at the back of the machine.

Supplied with 36 tooth TCT saw blade, sliding table, sliding mitre fence, side extension tables, floor stand, 4 adjustable feet, push stick, 1.7m power cable and UK 3 pin plug.

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. We recommend our model W696 which also has an induction motor to keep the noise level low.

There are alternate ways to configure the table saw:
The sliding carriage can be fitted on either side of the blade so that you can work on the left or right.
If you are not using the sliding carriage, you can fit one extension table on either side of the blade.

For compact storage the extension tables and sliding carriage can be quickly removed, (takes around 3 minutes). They reassemble without any further setting up required. With these parts removed the body of the saw measures 70cm wide x 100cm deep.

Please note: It is not possible to use a stacked dado set with this saw.

W522 Wheel Base: Add mobility to your workshop with the addition of a wheel base. Just press down on the two foot pedals to lower the wheels and roll the saw out of the way.

TB1060 Saw blade: High quality precision blade with more teeth for a finer finish. Includes noise reducing technology.

• Laser Cut Plate – Premium Quality SK5 Steel
• Resin Filled Laser Cut Slots – Noise Reduction
• Black Electro Plated Finish – Protects from Corrosion
• Tungsten Carbide Tipped – 40 Teeth
• Tri-Metal Brazing – Shock resistant
• Alternative Top Bevel Grind – Fast Clean Cuts
