Holzstar UMK6 Universal Woodworker Combination Machine with Stand 1000w 240v

Original price was: £1,079.99.Current price is: £995.90. Inc. VAT

SKU: UMK6
Free Delivery On This Item

BRIEF DESCRIPTION

The Holzstar UMK 6 is a versatile entry-level combination woodworking machine that combines sawing, milling, planing, thicknessing, and slot mortising in one compact unit. Ideal for hobbyists and small workshops, it delivers precision, flexibility, and efficiency in the smallest of spaces.

Description

Holzstar UMK6 Universal Woodworker Combination Machine with FREE Stand 1000w 240v

The Holzstar UMK 6 is a versatile entry-level combination woodworking machine that combines sawing, milling, planing, thicknessing, and slot mortising in one compact unit. Ideal for hobbyists and small workshops, it delivers precision, flexibility, and efficiency in the smallest of spaces.

Highlights

  • Precision 2-blade planer shaft with HSS blades

  • Aluminum sliding carriage with mitre fence

  • Compact, space-saving design with multiple applications

  • Practical slot drilling device with workpiece clamp

  • Two extraction ports for effective dust removal

  • Quick and easy saw blade height adjustment

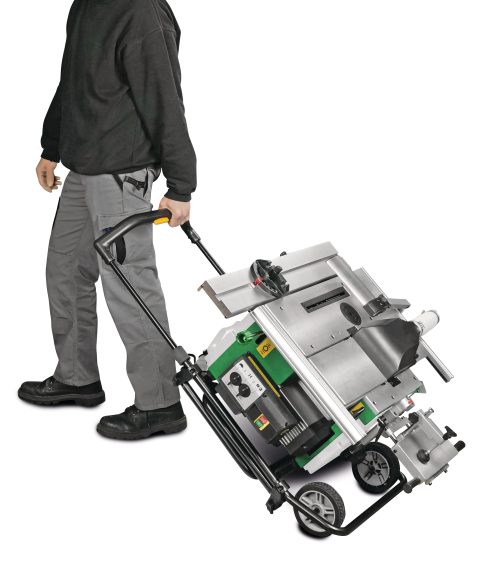

  • Supplied with practical machine base and chassis for mobility and working height

Specification.

  • 2-blade planer shaft
  • Planer blade set (2 pieces)
  • Saw blade, 200 x 30 x 2.6 mm, Z20
  • Sliding carriage for saw and router
  • Multifunction fence for parallel cutting and planing
  • Mitre fence

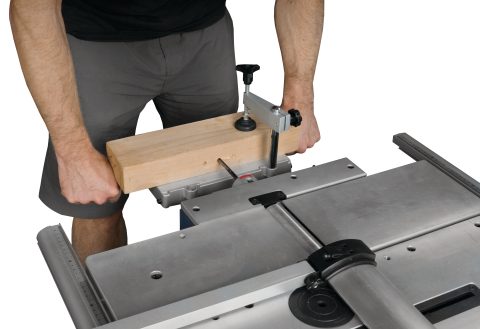

  • Slot drilling device with clamping arm
  • Workpiece pusher
  • Router collets collets 6, 8 mm
  • Clamping sleeves 6,8,10 mm
  • We have been told 1/4″ collets for the router have been ordered

Full Specification.

Dimensions and weights

Length 880mm

Width 835mm

Height 490mm

Net weight approx 49kg

Planing

Infeed table width 154mm

Infeed table length 620mm

Max. cutting depth of joints 1.5mm

Extraction port

Saw blade protection extraction port diameter 30mm dia.

Extraction port diameter thickness 50mm dia.

Extraction port diameter 60mm dia

Thicknesser

Thicknessing table length 320mm

Thicknessing table width 154mm

Working height min. thickness 9mm

Working height max. thickness 92mm

Max. cutting depth thickness 1mm

Electrical Data

Supply voltage 230Volt

Mains frequency 50Hz

Drive motor output 1,0kW

Sliding carriage and table

Sliding table length 740mm

Sliding table width 120mm

Table length 620mm

Table width 300mm

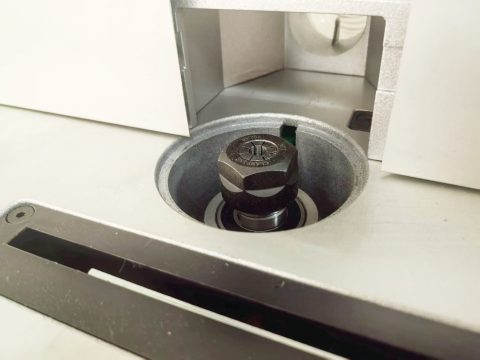

Milling spindle

Spindle speed(s) 9000min¯¹

Milling spindle holder for shaft diameter 6/8mm

Planing knife shaft

Planing shaft diameter 48mm

Number of planing blades 2

Planing shaft speed 6000rpm¯¹

Circular saw unit

Trimming length 500mm

Max. cutting height at 90° 65mm

Diameter of (main) saw blade 200mm

(Main) saw blade speed 4200min¯¹

Feed

Feed speed 7m/min

Feed shaft diameter 20mm

Slot mortising unit

Table slot mortising unit length 260mm

Table slot mortising unit width 125mm

Slot mortising unit vertical stroke 95mm

Slot mortising drill depth 60mm

Slot mortising unit longitudinal stroke 45mm

Slot mortising unit holder for shaft diameter 6/8/10mm
