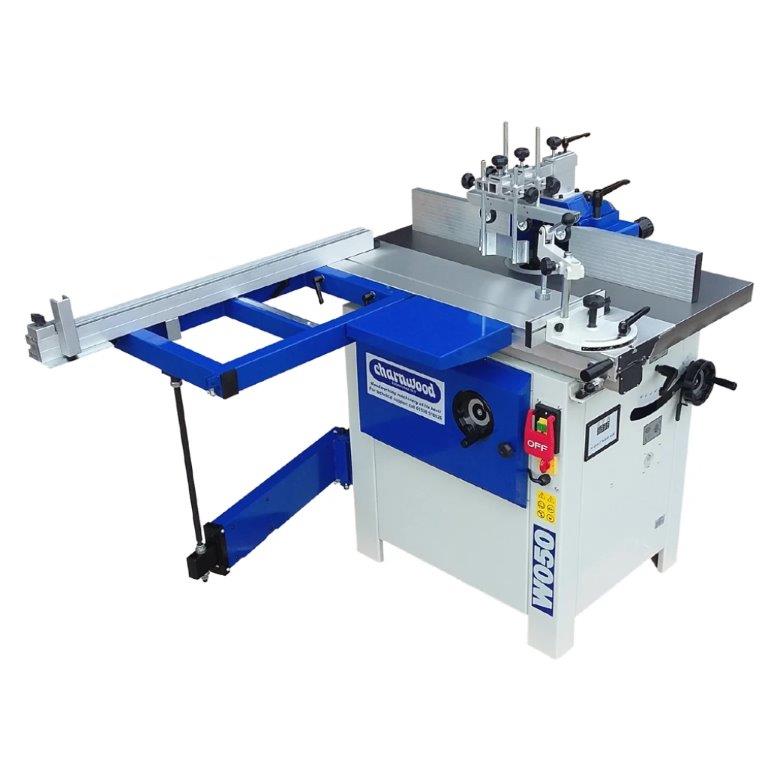

W050P Charnwood spindle moulder with square table extension table and telescopic support arm 2.8kw 230volt


SKU: W050-1
Free Delivery On This Item


W050P Charnwood spindle moulder with square table and telescopic support arm 2.8kw 230volt

SKU: W050-1 Categories: ,


Spindle Moulder Package Deal Save £150

Package Consists of:
W050 Spindle moulder
W050ET Square table and telescopic support arm

  • 2.8kW Induction Motor with Brake
  • Four Speeds with Digital read-out
  • Sliding Beam 48″ Capacity
  • Cast Iron Main Table
  • 45degree Backwards Tilting Spindle
  • Independently Adjustable Fences
  • Outrigger with Squaring Arm Included
  • Left & Right Spindle Direction

A large precision ground cast iron table forms the main table, with a sliding beam in front, which includes a mitre fence and work clamp as standard equipment.

A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current setting. Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold-down, a front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.

Supplied with a set of spindle spacers, table inserts (80mm, 110mm & 150mm), 2.0m power cable and fitted 16amp plug.

The package includes the outrigger table with telescopic support arm and is ideal for those working with larger panels or longer lengths of timber. The squaring arm can be set to any angle and has a flip-over sliding length stop graduated in millimetres up to 1500mm.

The optional Ring Fence allows safe working when putting an edge moulding onto curved-shaped pieces. It consists of a round fence to control the depth of cut, a transparent cutter guard, a lead-in guide and a 100mm diameter extraction outlet.

A 16amp, 240v electric supply is required to run this machine.

Charnwood W050P Specification


Motor (induction) Braked 2800w (3.75hp), 240v
Main table size 1000mm x 360mm
Sliding carriage size 1000mm x 240mm
Sliding carriage stroke 1200mm
Spindle diameter 30mm
Spindle Tilt +5 to – 45 degrees
Speeds 4 (1800, 3000, 6000 & 9000rpm)
Vertical stroke 100mm
Maximum tooling diameter (above table) 200mm
Maximum tooling diameter (below table) 180mm
Table aperture depth 50mm
Table height 900mm
Dust extraction outlet 100mm
Dimensions (WxDxH) 1000mm x 1300mm x 1250mm
Weight 218kg
Assembly Time Required 45 minutes (Needs 2 People)
Rating Trade
Product Guarantee 5 Years
Minimum Door Opening Required: Width In Crate 730mm
Minimum Door Opening Required: Width Out of Crate 670mm
