Charnwood SS18F 18″Scroll Saw With Foot Pedal Switch

£265.16 Inc. VAT

SKU: SS18F

In stock

Free Delivery On This Item

BRIEF DESCRIPTION

About Charnwood SS18F 18″ Scroll Saw With Foot Pedal

New Model: Launches December 2024

The Charnwood SS18F Scroll Saw is perfect for hobby, craft and model making. It’s fitted with a powerful 120w (0.16hp) smooth running motor, allowing electronic variable speed control from both machine mounted and foot pedal switches.

  • Extra carriage charges may apply to some areas in Scotland, please enquire.



SKU: SS18F Categories: , Brand:

PRODUCT VIDEO

Description

Charnwood SS18F 18″Scroll Saw With Foot Pedal Switch

New Model:

  • Large Capacity – 18” (456mm) Throat Depth
  • Fixed Table – Large Fixed Horizontal Steel Table
  • Tilt – Blade Yoke Tilts 45 Degrees Left and Right
  • Easy Control – Variable Speed Foot Pedal Switch
  • Tidy – Spare Blade Storage Case
  • Universal – Accepts Both Pin and Plain Ended Blades
  • Clean – Adjustable Air Blower
  • Practical – 50mm Depth of Cut

About Charnwood SS18F 18″ Scroll Saw With Foot Pedal

New Model:

The Charnwood SS18F Scroll Saw is perfect for hobby, craft and model making. It’s fitted with a powerful 120w (0.16hp) smooth running motor, allowing electronic variable speed control from both machine mounted and foot pedal switches.

This enables the user precise control over the work, which is placed on the large horizontal fixed steel table. Both hands are free to guide the work piece, while simultaneously controlling the blade speed via their foot operated throttle pedal switch. This is the safest practice for accurate cutting.

A ridged steel frame provides the scroll saw stability and keeps vibration down to a minimum. It has 4 mounting points for those wishing to secure it to a workbench.

The SS18F scroll saw can cut up to a depth of 50mm in various materials and its 456mm throat allows diverse shapes to be worked. The parallel arm design gives vertical and tilting cuts up to 45 degrees either side of vertical for high quality results. There is an adjustable height foot clamp to hold the work piece down against the table and prevent chattering. An air blower keeps dust away from pencil lines to ensure they remain visible when following a template. The transparent guard keeps the operator safe from contact with the moving parts.

The addition of the foot pedal switch will transform the way you work with the saw, allowing speeds from 0 to 1550 spm to be controlled via the foot pedal. Once you have tried it you never want to be without it! The ability to stop and start without removing hands from the work piece, allows you to work quicker and more accurately, especially with complex designs.

There are 2 types of scroll saw blades available: Pin end and Plain end. The SS18F can use either type.
Pin ended blades are easier and quicker to install, they simply hook over the blade hanger.
Plain ended blades can be made thinner and are therefore more often used for very fine or intricate cutting. They are secured with the inbuilt clamps on the saw arm blade hangers.

Unlike tilting table scroll saws, the static horizontal table of the SS18F allows very easy access and sight of both top and bottom blade hangers and clamps.

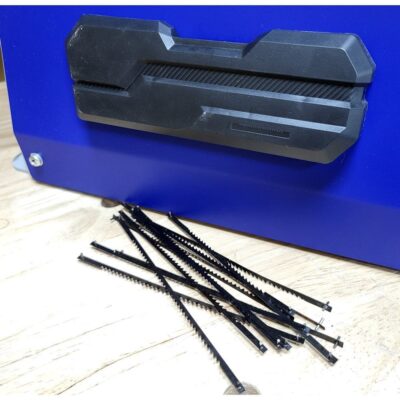

On the side of the saw is a storage compartment to keep spare blades and service tools safe & ready to use.

Supplied with 1 Plain type blade, 1 Pin type blade, foot pedal switch, 2m power cable and UK 3 pin plug.

Manufacturer guarantee

This Charnwood machine carries a limited five-year manufacturer guarantee for its original purchaser in England, Scotland or Wales, for qualifying sales after 1 January 2022. Cover starts on the invoice or receipt date. During year one, electrical and mechanical faults covered by the guarantee include parts and labour. In years two to five, cover is for replacement parts only and excludes electrical components. Tooling, consumables and normal wear are excluded. Other conditions apply; see Charnwood’s full terms. Your statutory consumer rights are unaffected.

Read the manufacturer’s full guarantee terms.

Specifications for Charnwood SS18F 18″ Scroll Saw With Foot Pedal

SpecificationValue
Motor (DC Brush)120w, 240v, 50hz
Blade Length127mm (5″)
Throat Depth457mm (18″)
Max. Depth of Cut @ 9050mm
Max. Depth of cut @ 4520mm
Variable Speed550-1550 spm
Table Size541mm x 349mm
Blade Tilt-45 to +45 degrees
Dust Extraction Outlet30mm ID / 35mm OD
Bench Top to Work Table Height190mm
Assembled Dimensions (WxDxH)350mm x 760mm x 400mm
Assembly Time Required5 Minutes
Shipping Dimensions (WxDxH)430mm x 840mm x 465mm
Weight24kg
RatingHobby
Product Guarantee5 Years
