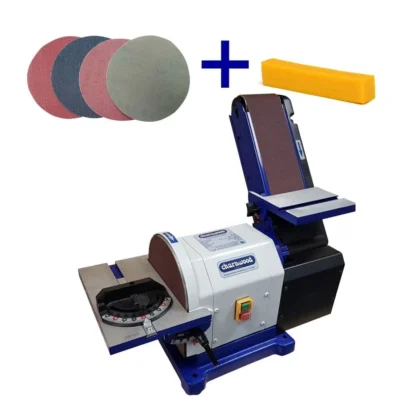

Package Deal; Charnwood BD48 Belt & Disc Sander, 4″ x 8″, BC01 Cleaner, VB300 & 4 x 8″ Discs

Package Deal Includes BD48 Belt & Disc Sander 4″ x 8″, BC01 Belt Cleaner, VB300 Conversion Kit, 4 x 8″ Hook & Loop Discs

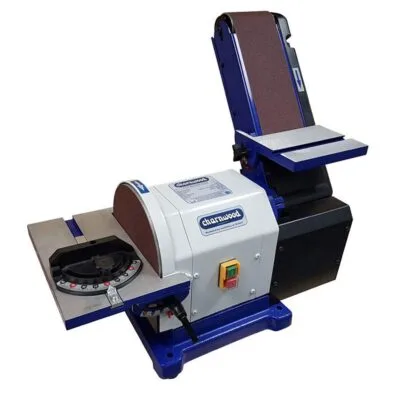

BD48 Belt & Disc Sander 4″ x 8″

This heavy duty bench top sander has a cast iron base with extended legs for increased stability. It sits on 4 rubber feet or can be secured to a work bench using the 4 mounting points provided.

The design has been updated and simplified from the traditional belt driven sander. Both the belt & disc functions are powered directly from the motor shaft.

The disc sander side has a 200mm diameter disc complimented by an aluminium work table with 45 degree tilt, secured on both sides. The mitre guide fits into a T slot in the work table allowing the disc to be used for accurate sanding of square edges as well as bevels, mitres and even compound angles.

The sanding belt can be used in horizontal or vertical mode. It can also be locked at an angle in between, sometimes more comfortable when using it for sharpening tools. The sanding belt has a dedicated work table with tilt function and a T slot for the mitre guide.

The open drum end of the belt can be used for sanding curved edges, cut on a bandsaw or scroll saw.

When the time comes to replace the sanding belt there is a quick release tension lever and tracking adjustment to balance the new belt.

The unique feature on this machine is the inclusion of the dust collector. Sitting underneath the sanding belt, is a powered fan which creates a powerful airflow to extract the dust from both the disc and the belt. The dust is collected in a bag which has a quick release clamp for fast removal and a zip for emptying.

Supplied with 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, dust bag, 1.8m power cable and UK 3 pin plug

If you would prefer to connect this machine to your own dust extractor, use our adapter 100/58RC to convert it to 100mm diameter.

We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.

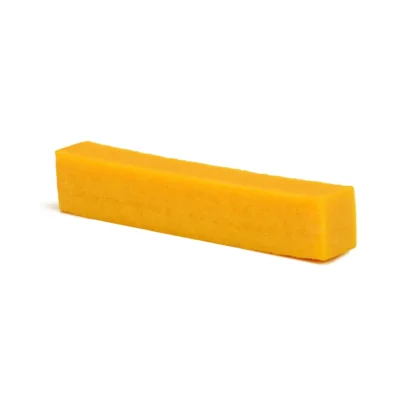

BC01 Sanding Disc, Belt & Sleeve Cleaner

Dramatically increase the life of sanding belts, discs & sleeves with this cleaning stick.

Removes clogged up pitch and sawdust when pressed lightly against a moving abrasive material.

Can be used on sanding discs, sanding belts and sanding drums.

Size 35mm x 35mm x 215mm

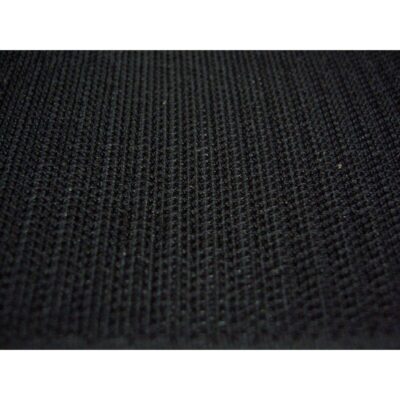

VB300 Hook & Loop Pad to Convert Sanding Discs up to 300mm (12”) Diameter

Convert your disc sander to unlock the advantages of the Hook & Loop system.

• Change from one disc to another in seconds
• Work up through grit sizes to achieve a higher quality finish on your work
• Remount a part worn disc

No more wasting a half used disc when switching from one grit to another and no more scraping off old adhesive and stubborn bits of old disc.

Simply stick this self adhesive backed hook pad, manufactured by Velcro, onto your disc and trim the edges. Pack contains a square pad 300mm x 300mm.

Can be used with any sized disc up to 300mm (12″) diameter. Trim to size.

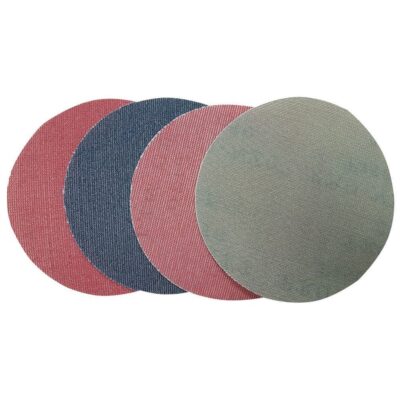

4 x 8″ Hook & Loop Discs

SPECIFICATION.
