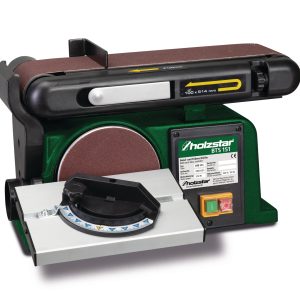

Holzstar BTS151 Belt and Disc Sander 100mm Wide belt x 150mm Dia. Disc 230volt

£167.00 Inc. VAT

SKU: BTS151
Free Delivery On This Item

BRIEF DESCRIPTION

For sanding long edges, front edges, curves, mitres and plane surfaces at right angles, processing softwood and hardwood, sanding belt for vertical or horizontal use infinitely variable swiveling from 0° to 90°. Workpiece support infinitely adjustable from 0 to 45° on the belt and disc unit

SKU: BTS151 Categories: , ,

PRODUCT VIDEO

Description

Holzstar BTS151 Belt and Disc Sander 100mm Wide belt x 150mm Dia. Disc 230volt

Check availability before ordering.

Product Description

  • For sanding long edges, front edges, curves, mitres and plane surfaces at right angles
  • For processing softwood and hardwood

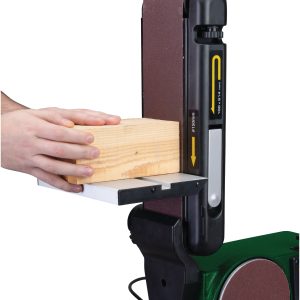

  • Sanding belt for vertical or horizontal use infinitely variable swiveling from 0° to 90°
  • Workpiece support infinitely adjustable from 0 to 45° on the belt and disc unit
  • Workpiece support with double-sided suspension for more stability

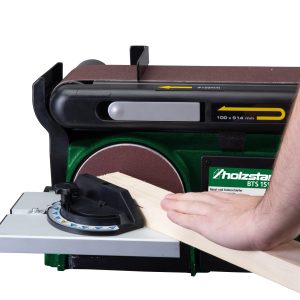

  • Miter fence guided in T-slot
  • Compact machine housing in sturdy steel cast-iron construction

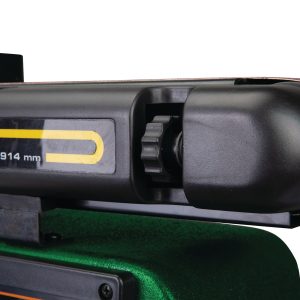

  • Fast, tool-free sanding belt change via quick-release device
  • Integrated extraction connection for connecting an external extraction unit
  • 5903151

TECHNICAL DATA

Dimensions and weights
Length (product) approx. 460mm
Width/depth (product) approx. 360mm
Height (product) approx. 280mm
Net weight approx. 16.5kg

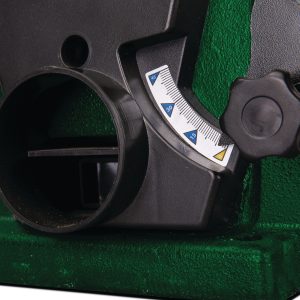

Extraction port
Extraction port diameter 63mm
Work top(s)
Work table length 226mm
Work table width 160mm
Table pivoting 0 – 45°
Electrical Data
Absorbed power drive motor 0.37kW
Protection class drive motor IP 20
Supply voltage 230V
Total current draw 2,2A
Mains frequency 50Hz
Noise emission
Sound power level Lw (idling without extraction unit) 88.7dB(A)
Sanding machine
Sanding belt length 914mm
Sanding disc diameter 150mm
Sanding belt width 100mm
Circumferential belt speed(s) 7.35m/s
Sanding machine pivoting 0 – 90°
