HOLZSTAR ADH 31C 308x225mm Planer/Thicknesser 2200watt (3hp) 16amp.

Delivered to your door, no extra carriage charge.

HOLZSTAR ADH 31C  308 wide x 225mm deep  Planer/Thicknesser 2200watt (3hp) 16amp.

ADC 31C.  3 x HSS planing knives + 2200W (3hp) motor 230v 16 Amp

(check availability before ordering)

• For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
•  Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
•  Automatic workpiece feed
•  Easily adjustable aluminum dressing fence, til table from 90 ° to + 45 °
•  Large dimensioned dressing table made of ribbed die-cast aluminum
•  Large thick cast iron table with ground surface

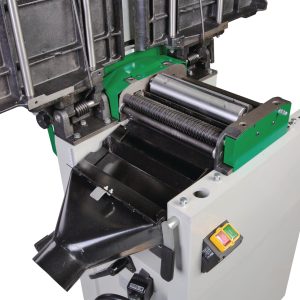

•  Integrated, foldable chip extractor hood
• 5904031

Specifications.

Dimensions and weights
Length approx.	1300 mm
Width/depth approx.	720 mm
Height approx.	1010 mm
Weight approx.	210 kg

Electrical Data
Drive motor output	2,2 kW  (3hp) 16amp
Absorbed power drive motor	2.84 kW
Supply voltage	230 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter thickness	100 mm
Extraction port diameter joints	100 mm

Feed
Speed	7 m/min

Jointing
Max. cutting depth	3 mm
Planing stop pivoting range	90 – 45 °

Planing knife shaft
Type	Strip planer blade shaft
Number of planing blades	3 knife HSS
Speed	5200 rpm
Max. planing width	308 mm

Thickness
Working height min.	5 mm
Working height max.	225 mm
Max. cutting depth	3 mm
