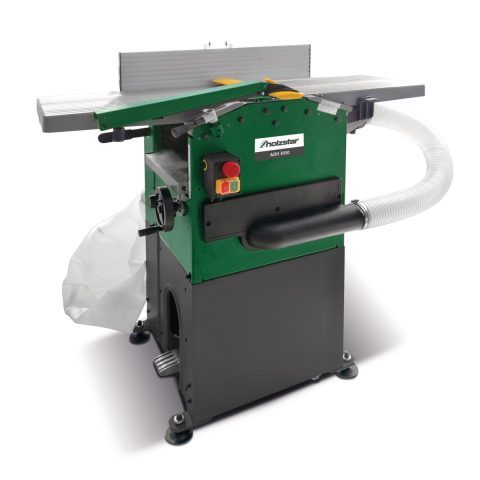

Holzstar ADH 3050 AS 12″ Planer Thicknesser with Floor stand + Integral Dust Extractor 1800 watt Motor 230volt

Delivered to your door, no extra carriage charge.

Holzstar ADH 3050 AS 12″ Planer Thicknesser with Floor stand + Integral Dust Extractor 1800watt motor 230 volt.

Holzstar ADH 3050 AS 12″ Planer Thicknesser with Floor stand + Integral Dust Extractor 1800 watt Motor 230volt

• For angular joining (90°) and precise planing of solid wood boards and moldings
• Automatic workpiece feed
• Rubberized extraction roller protects the wood surface when planing thick

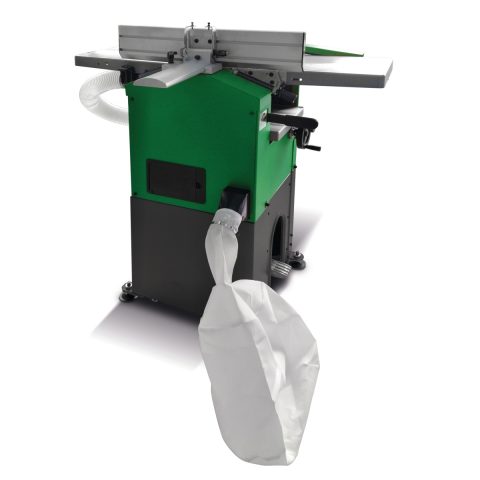

• Suction integrated in the substructure
• With chassis as standard
• Simple and precise adjustment of the chip removal
• Dressing table made of milled cast aluminum
• Space-saving compact design

• 90 Degree and angular planing of solid wood boards and moldings
• Automatic workpiece feed
• Rubberized extraction roller protects the wood surface when planing thick
• Suction integrated in the substructure
• With chassis as standard
• Simple and precise adjustment of the chip removal
• Dressing table made of milled cast aluminum
• Space-saving compact design

Specifications.

Dimensions and weights
Length approx.	1140 mm
Width/depth approx.	800 mm
Height approx.	1075 mm
Weight approx.	93 kg

Electrical Data
Drive motor output	1.25 kW
Absorbed power drive motor	1,8 kW
Supply voltage	230 V
Mains frequency	50 Hz

Extraction port
Suction hood connection diameter	100 mm
Suction unit connection diameter	75 mm

Feed
Speed	8.5 m/min

Jointing
Max. cutting depth	3 mm
Planing stop pivoting range	90 – 45 °

Planing knife shaft
Type	Strip planer blade shaft
Number of planing blades	2 St
Speed	6700 min¯¹
Max. planing width	305 mm

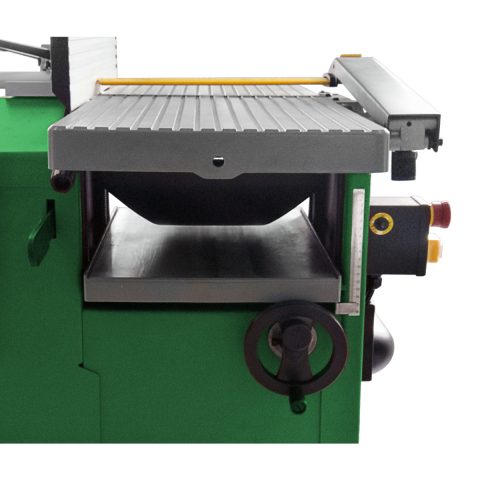

Thickness
Working height min.	6 mm
Working height max.	160 mm
Working length min.	250 mm
Max. cutting depth	2 mm
