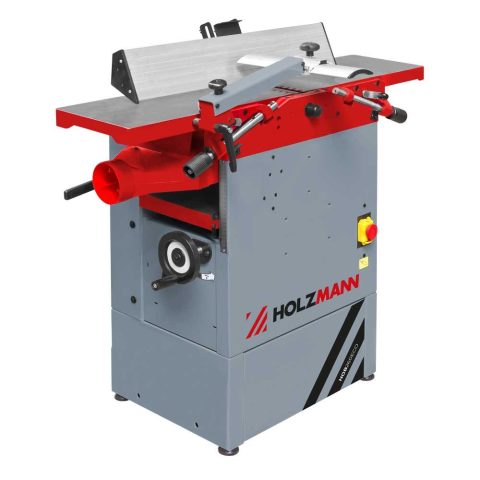

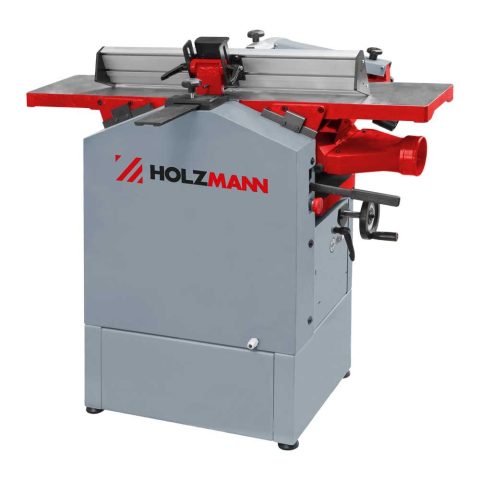

Holzmann HOB260ECOSMW2 Planer Thicknesser with SPIRAL CUTTER-HEAD 2hp / 230volt motor

Holzmann HOB260ECOSMW2 Planer Thicknesser with spiral cutter-head 260mm x 195mm deep 2hp / 230volt motor.

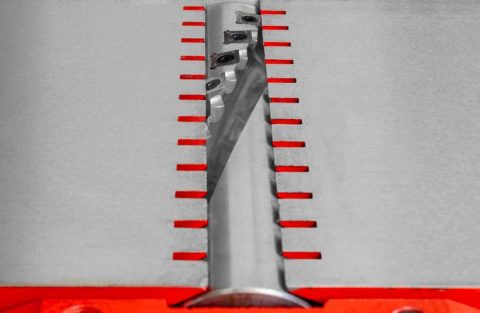

Spiral cutter head (2 grooves)

Solid cabinet base unit ensures high stability

Adjustable aluminium fence, 3-knife cutter block

Collateral pivoting grey cast iron tables enable comfortable thicknessing

Dust collector plug allows a dust and chip-free working environment

Planing

Planing width 260mm

Planing table size 1085 x 256mm

Thicknesser table height 850mm

Max. thicknessing cutting depth 3mm

Planer fence 730 x 130mm

Fence tilt 0 – 45°

Motor data

Motor power 1500watt 2hp 230 voltage

Measurements

Dust collector port Ø 100mm

Total dimensions 1150 x 490 x 750mm

Thicknessing

Table size 590 x 245mm

Cutting depth 2mm

Thicknessing height 195mm

General planing

Shaft diameter Ø 75 x 250 mm

Shaft speed in 4000rpm

Spiral cutter knives  20

Volume level and vibration

Sound power level 83 dB(A)

sound pressure level 77,3 dB(A)

Weight

Gross weight 167.50kg

Net weight 146kg

Packaging

Packaging width 490mm

Packaging length 1.150mm

Packaging height 750mm

included in delivery: 20 x cutter inserts assembled (15 x 15 x 2,5 mm | 30°), 3 cutter-inserts for replacement, shaft cover

Complete with a planing fence, planing knives mounted, knife setting gauge.
