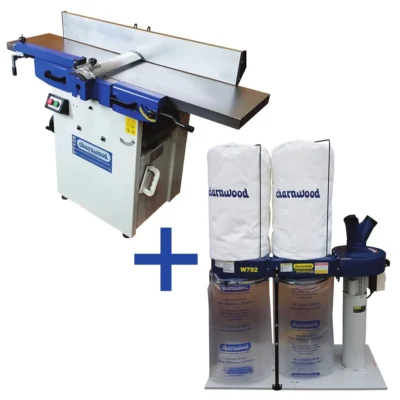

Charnwood PT12SP Package Deal; PT12S Planer Thicknesser, plus W792 Dust Extractor, 3m 100FLEX Hose, 2 100HC Clamps

PT12S Planer Thicknesser 12″ x 9″ With Spiral Cutter Block

W792 Professional Dust Extractor 2200w 240v

3 metres x 100FLEX Transparent Flexible Hose 100mm (4″) Diameter

2 x 100HC Hose Clamps Double Wire Screw Clamp for 100mm Diameter Hose

Price available until end of June 2025 or whilst stocks last

PT12S Planer Thicknesser 12″ x 9″ With Spiral Cutter Block

A combination planer thicknesser with fast changes between functions. Fitted with a spiral cutter block with TC spur cutters for a smoother finish and noticeably reduced noise levels.

The large cast iron infeed bed is quick to adjust and lock in place, with a clear setting scale. The bridge guard has simple controls to set the height over the cutters and the gap the the side fence. The side fence can be positioned anywhere across the cutter block, useful for getting even wear on the cutters when working mainly with narrower materials. The fence can also be tilted back to 45 degrees.

One of the main design improvements on this model, over previous versions, is the quick and easy method to change over from planing to thicknessing.  No need to remove the side fence, just 2 locks to undo and then both beds lift in a parallel motion and lock out when fully raised. Next the dust collection hood swings up and over, latches into place, and you are ready to go.

Setting the thicknessing depth is done by rotating the cast iron handwheel (1 rotation = 2mm) and reading from the mechanical digital display, accurate to 1/10th of a millimetre. A position lock is fitted which prevents any movement.

The drive rollers can be disengaged when planing to save wear and tear on the mechanism.

At the heart of the machine is a spiral cutter block with 4 rows of spur cutters, arranged so that they cut in a shearing action, rather than straight. This type of cutter block is more expensive than a conventional set up but does offer several advantages. The more use the machine gets – the more these advantages pay off.

Advantages of spiral cutters over conventional knives:
Shearing Cut = Better finish. Expect a smoother finish in softwood, hardwood and difficult grain.
Low Sound Levels = Less noise by up to 50%. Each blade is moving less air and taking a smaller cut.
More Knives = Reduced energy consumption. Each cut uses less energy, overall saving can be 30%.
TC (Tungsten carbide) Cutters = longer cutter life, up to 10 times compared to HSS. Each cutter can be rotated when worn.
Less Maintenance = Quick and easy to change out 1 or 2 cutters after a chip.

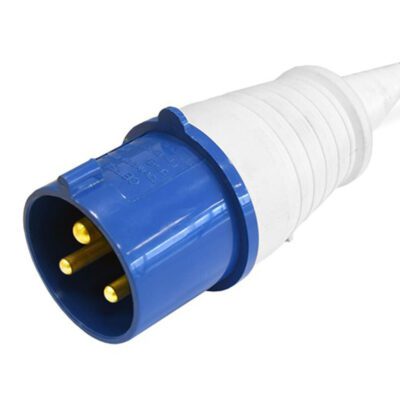

Supplied with 5 spare TC cutters, 100mm diameter dust extraction outlet, 4 adjustable feet, push pad, service tools, 1.7m power cable and 16amp industrial blue plug.

This machine requires a 16amp supply and it is recommended that a C Type breaker is used.

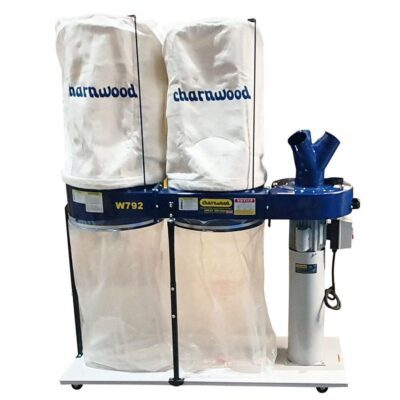

W792 Professional Dust Extractor 2200w 240v

Powered by a 3hp Induction motor rated for continuous running, up to 8 hours per day. A rigid frame supports the fan unit and lifts the inlet port to a height of 110cm, which can give increased efficiency when a hose branch goes overhead or stays up at bench height.

These collectors are suitable for locations where the extractor will be cited a little distant from the dust source. The higher flowrate also allows a small system of hose branch lines to be fitted around the workshop to allow extraction from a variety of machines and even up to 3 at the same time.

The motor drives a riveted steel fan which creates the airflow, depositing all dust, chips and shavings into the collection bags. The two collection bags fill equally and are generally emptied at the same time.

When it comes to emptying the collection bag, a quick release metal strap frees the bag, ready for replacement. Spring clamps hold the new collection bag in position whilst the metal strap is being refitted. Anyone who has changed a bag without that feature will certainly appreciate it. A foam strip around the rim of the collector body ensures a good seal once the strap is clamped shut.

We fit as standard a super fine 2 micron cloth filter making the unit suitable even for MDF dust.

Maximum recommended total hose length per run is 10 metres @100mm diameter.

Supplied with transparent collection bag, durable steel fan, NVR switch, 4 castors, quick release metal straps, 3 way splitter and 1.6m power cable (No plug).

A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.

100FLEX Transparent Flexible Hose 100mm (4″) Diameter – 3 metre length

Transparent dust extractor hose 100mm (4″) internal diameter.

This is the most common size of extraction hose and will fit directly onto the inlet of most workshop extractors.

We use a PU (Polyurethane) product which is 5 times stronger than the traditional PVC.

Its transparency enables blockages to be quickly identified and cleared.

The hose has a right handed, copper coated, steel wire helix to keep its strength and shape. Where static build up is an issue, the wire can be used to add grounding.

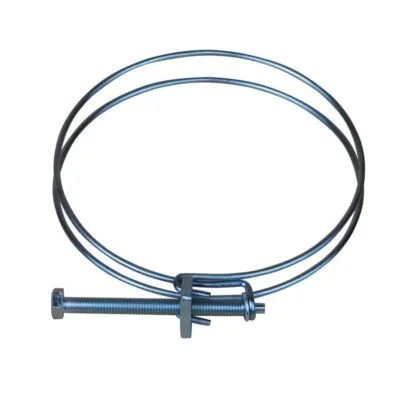

Hose Clamps Double Wire Screw Clamp for 100mm Diameter Hose – 2 pieces

For use with 100mm diameter hose. Hoses are known by their inside diameter. The hose clamp starts 5mm diameter bigger than the stated size, so it can be tightened up, using a screwdriver or 10mm spanner. It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
