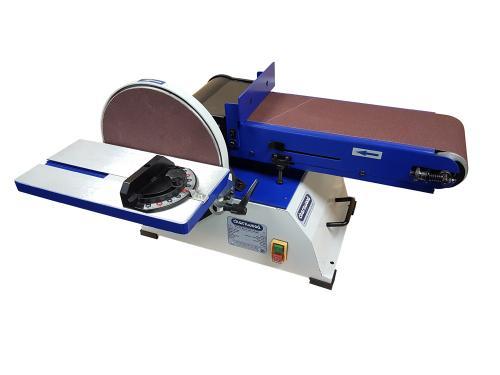

Package Deal; Charnwood BD610 Belt & Disc Sander, 6″ wide belt x 10″ dia disc

A heavy duty workshop sander, with the traditional combination of belt and disc, driven via belt by a quiet 1hp induction motor.

The large diameter disc is fitted with a sturdy aluminium table which is secured on both sides. Radiused guides allow the table to tilt to 45 degrees and be accurately locked at any angle. The table also has a T slot for the mitre guide, which is adjustable to 60 degrees each way.

A sanding belt of this size would most commonly be used in the horizontal position, however it can be moved into the vertical position when required. The belt has a back stop fence with a removable plate, allowing the user to make their own plate to suit any application they have.

The open end of the sanding belt can be used for finishing curved shapes and edges.

When the time comes to replace the sanding belt there is a quick release tension lever and fine tracking adjustment to balance the new belt.

Given that there may be times when you need to move this machine off the work bench, the design incorporates a pair of carry handles.

A single dust collection outlet gives efficient extraction, from both the disc and belt, when connected to a suitable vacuum or extractor.

The sander sits on 4 rubber feet or can be secured to a work bench using the 4 mounting points provided.

Supplied with mitre guide, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.75m power cable and UK 3 pin plug.

To connect this machine to a dust extractor using 100mm diameter hose, use adapter 100/58RC.

We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.

Specifications for Package Deal; Charnwood BD610 Belt & Disc Sander, 6″ x 10″
