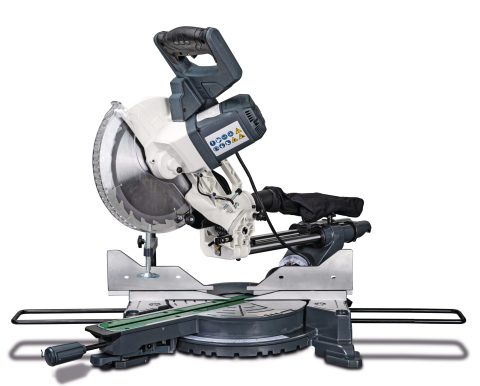

Holzstar KGZ 255 E 10″ Sliding crosscut mitre saw REDUCED PRICE WHILE STOCKS LAST

Holzstar KGZ 255 E 255mm Sliding crosscut mitre saw 10″ TCT Blade 230V

• Infinitely adjustable double mitre and tilt to the left
• Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable
• Laser projection on the workpiece for precise control of the cutting position
• Laterally extendable support aids for longer workpieces
• Double adjustable cross-cut depth limiter
• Pull function for extended cutting range
• Standard with hold-down clamp for safe workpiece locking
• Extraction connection for dust collection bag or connection of an external extraction system

TECHNICAL DATA.

Saw band speed	5000 min¯¹
Saw blade diameter	255 mm
Max. bevel angle range left	45 °
Max. bevel angle range right	45 °
Max. mitre left	45 °
Max. mitre right	45 °
VPE	1



Cutting capacity
0° inclination / 0° mitre	315 x 90 mm
-45° inclination / 0° mitre	215 x 90 mm
+45° inclination / 0° mitre	215 x 90 mm
0° inclination / -45° mitre	315 x 40 mm
-45° inclination / -45° mitre	215 x 40 mm
+45° inclination / +45° mitre	215 x 40 mm

Dimensions and weights
Length approx.	900 mm
Width/depth approx.	550 mm
Height approx.	430 mm
Weight approx.	17 kg



Electrical Data
Main motor	1,8 kW
Supply voltage	230 V
Mains frequency	50 Hz
