Charnwood W691CF 2HP Single Bag Dust Extractor with Cartridge Filter Package 230 Volt.

W691CF 2HP Single Bag Dust Extractor with Cartridge Filter Package.

• Extra carriage charges may apply to the Scottish Highlands, please enquire.

Package includes W691 & CF2024
W691 2hp Dust Extractor

2HP Dust Extractor with 1 micron Cartridge Filter Upgrade – SAVE £30

A larger extractor aimed at workshops where extraction is not continuously needed.

• Powerful & Quiet 2hp Induction Motor
• 2 Inlets For Simultaneous Extraction
• Quick Action Metal Bag Straps

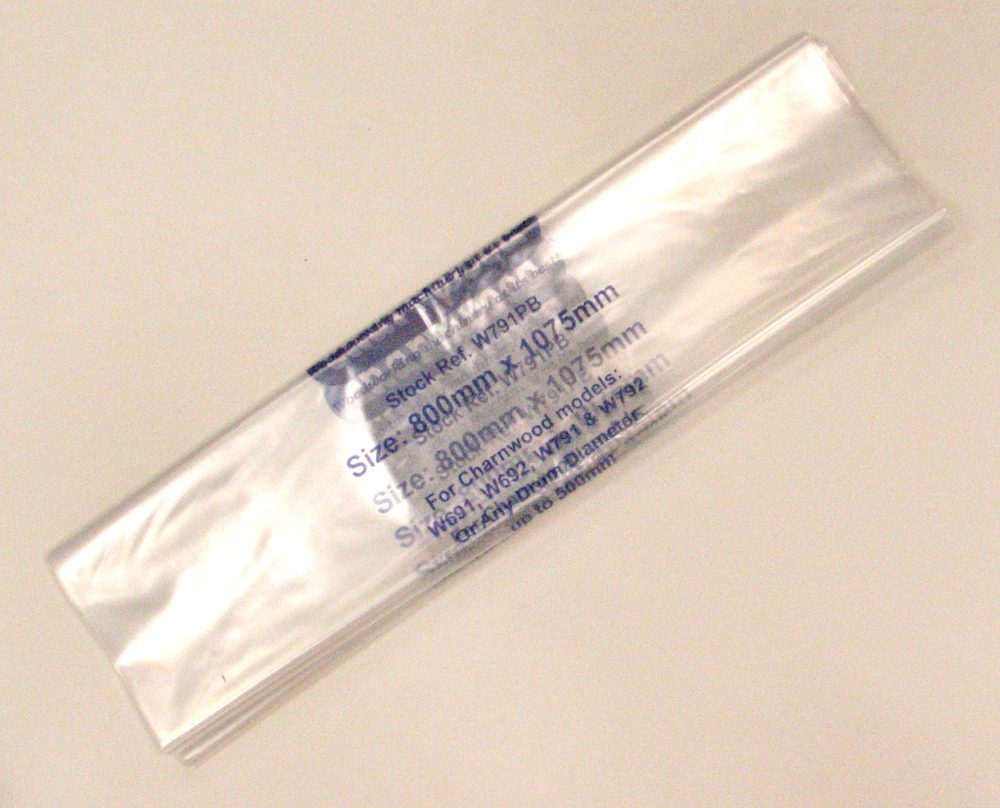

• Transparent Heavy Duty Collection Bag
• 1 micron Cartridge Filter
• 16amp, 240v Electric Supply Required
• Drum Bag Clips to make easy work of changing the collection bag
• Rubber Band on the Drum to give a better seal

These more powerful machines give a higher flowrate per hour which allows a longer hose length to be attached or a small system of branches and gates to be fitted around the workshop.
The second in our series of great value units is this 2hp model fitted with a large collection bag making it suitable for any high volume waste machinery. The extractor is fitted with two inlets, which can be used simultaneously for example to collect from above and below the saw blade on a table saw. Maximum recommended total hose length is 7 metres.

The standard cloth filtration bag is replaced with a cartridge to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range. The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.

To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handles after each use, moves the internal paddles which clean the inside of the filter and prevent clogging.

Supplied with transparent collection bag, durable steel fan, NVR switch, wheels, quick release metal straps, Y branch and 1.6m power cable (No plug).

A 16amp fixed electric supply is required to run this machine. We recommend using a 16amp plug.

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool. If you need need a longer duty cycle than this please look at our professional heavy duty range of extractors.

SPECIFICATION.

Motor (induction)	1500w (2hp), 240v 16amp
Flowrate (cubic metres per hour)	2000m3/hour
Inlet Diameter	1 x 125mm or 2 x 100mm
Bag capacity	148 Litres
Maximum continuous run time	2 hours
Dimensions (WxDxH)	900mm x 560mm x 1950mm
Weight	47kg
Assembly Time Required	60 Minutes
Rating	Hobby / Light trade
Product Guarantee	5 Years
