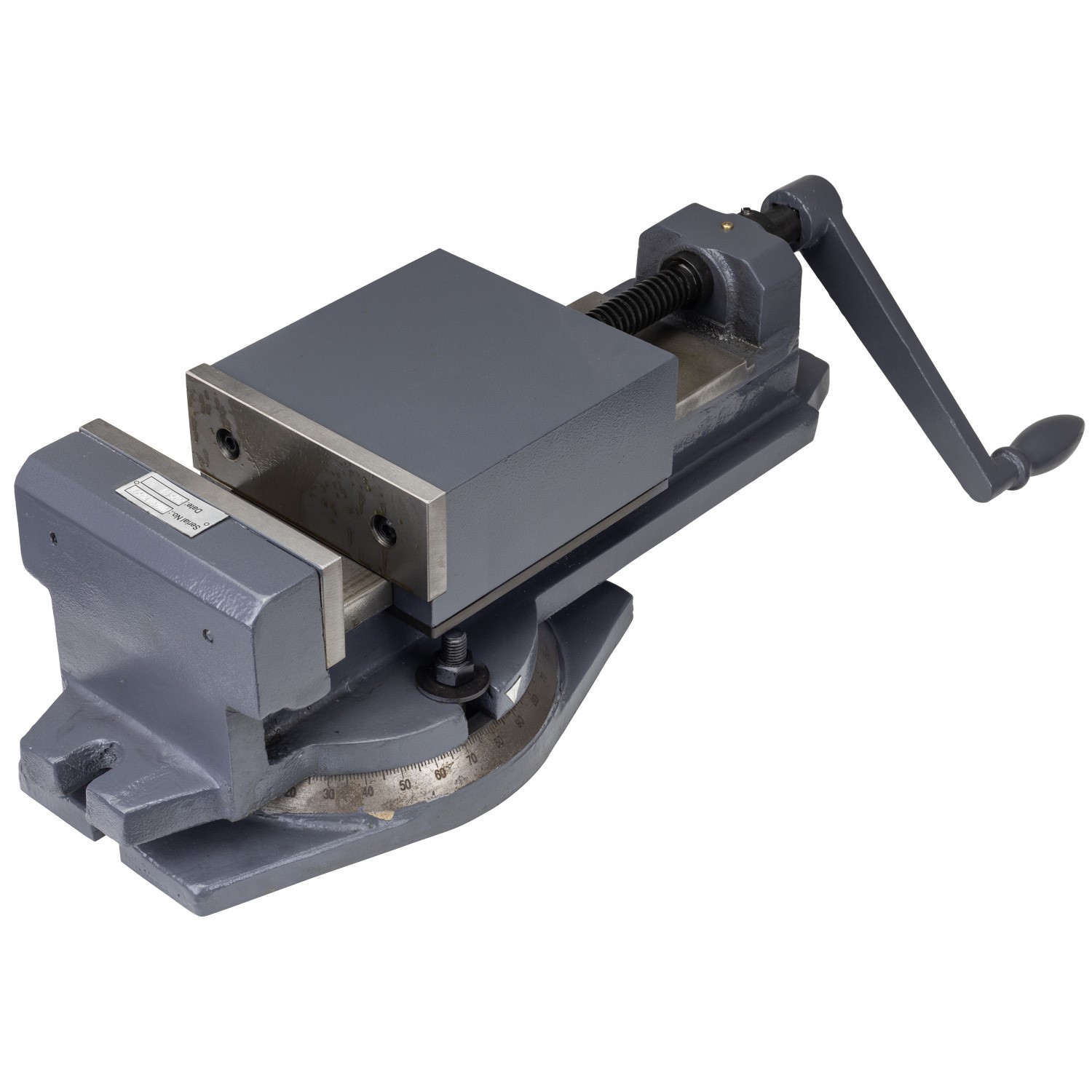

SIP 01729 6″ Swivel Machine Vice
Original price was: £347.99.£323.90Current price is: £323.90. Inc. VAT
SKU: 01721-1-1-1BRIEF DESCRIPTION
The SIP 01729 6″ Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access. Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Description
SIP 01729 6″ Swivel Machine Vice
The SIP 01729 6″ Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.
Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
KEY FEATURES
- Heavy-duty 6″ machine vice with grey cast iron body and hardened tool steel jaws
- Swivel base allows 0° to 360° rotation without unclamping the workpiece
- Adjustable design reduces set-up time, maintains accuracy and improves access
- Angle gauge for precise set-up for accuracy in complex and repetitive machining
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
- Perfect for use in professional metalwork and fabrication workshops
Full Specification
The SIP 6″ Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.
Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.
What’s in the box?: 1x SIP 6″ Swivel Machine Vice.
HEAVY-DUTY 6″ MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS

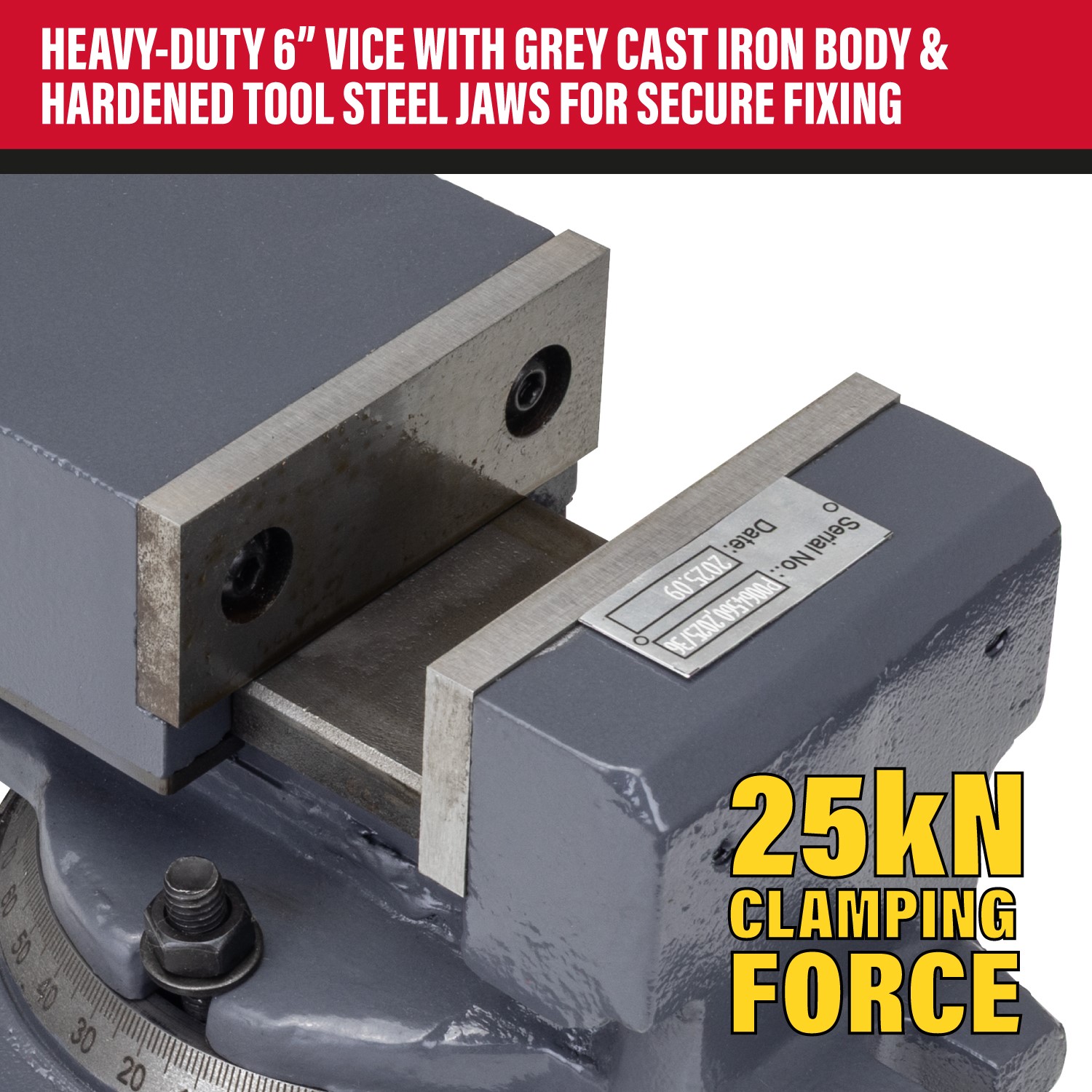

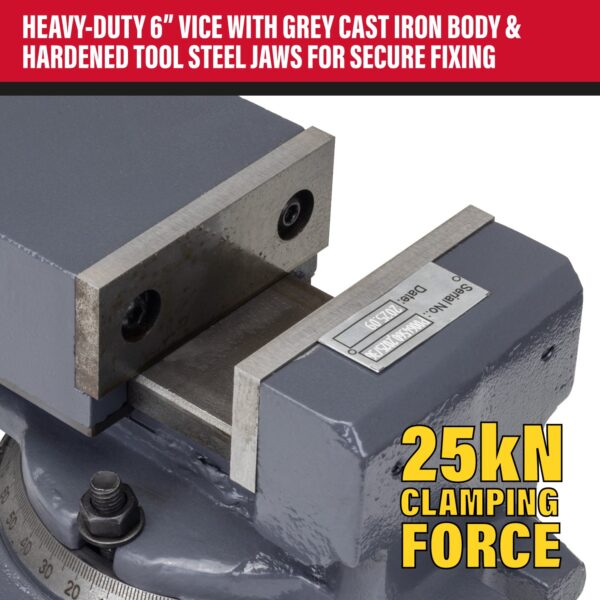

- High-quality machine vice with 6″ jaw opening and 25kN clamping force for secure fixing of workpieces in a variety of positions.
- Built with a robust grey cast iron machine vice body and hardened tool steel jaws for outstanding durability and secure clamping.
- The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.
ROTATING SWIVEL BASE FOR INCREASED FLEXIBILITY WHEN POSITIONING WORKPIECES

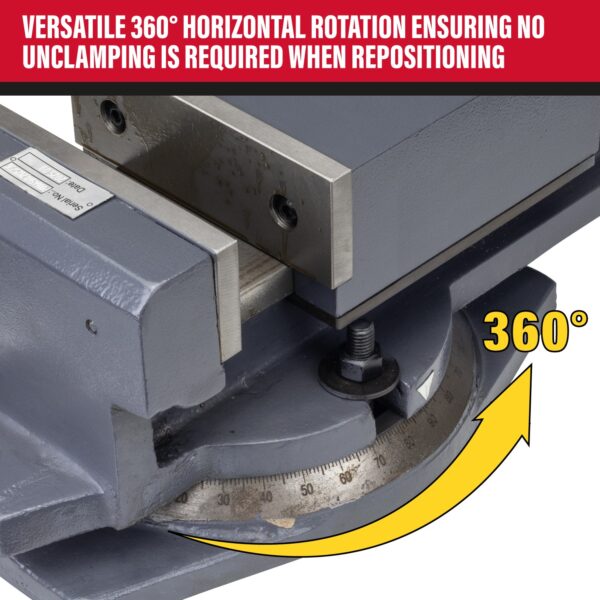

- Mounted on a durable swivel base that allows unrestricted 0° to 360° rotation of a workpiece to the desired angle without need to unclamp it.
- This function ensures high versatility and, because pieces do not need to be unclamped, maintains accuracy during complex drilling.
- Specific angles can be set using the angle gauge built into the swivel base.
COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE
-
- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill
Technical Information
| ITEM NO. | 01729 |
| Jaw Width: | 6″ (152mm) |
| Jaw Opening: | 6″ (152mm) |
| Jaw Depth: | 2″ (51mm) |
| Clamping Force: | 25kN |
| Vice Height: | 6″ (152mm) |
| Base Type: | Swivel |
| Base Size: | 11.5″ (292mm) x 8.4″ (214mm) |
| Composition: | Grey cast iron (body), hardened tool steel (jaws) |
| Mounting Hole Size: | 18mm |
| Accuracy / Parallelism: | 0.05mm / 100mm |
| Net Weight: | 40kg |
| Gross Weight: | 41kg |

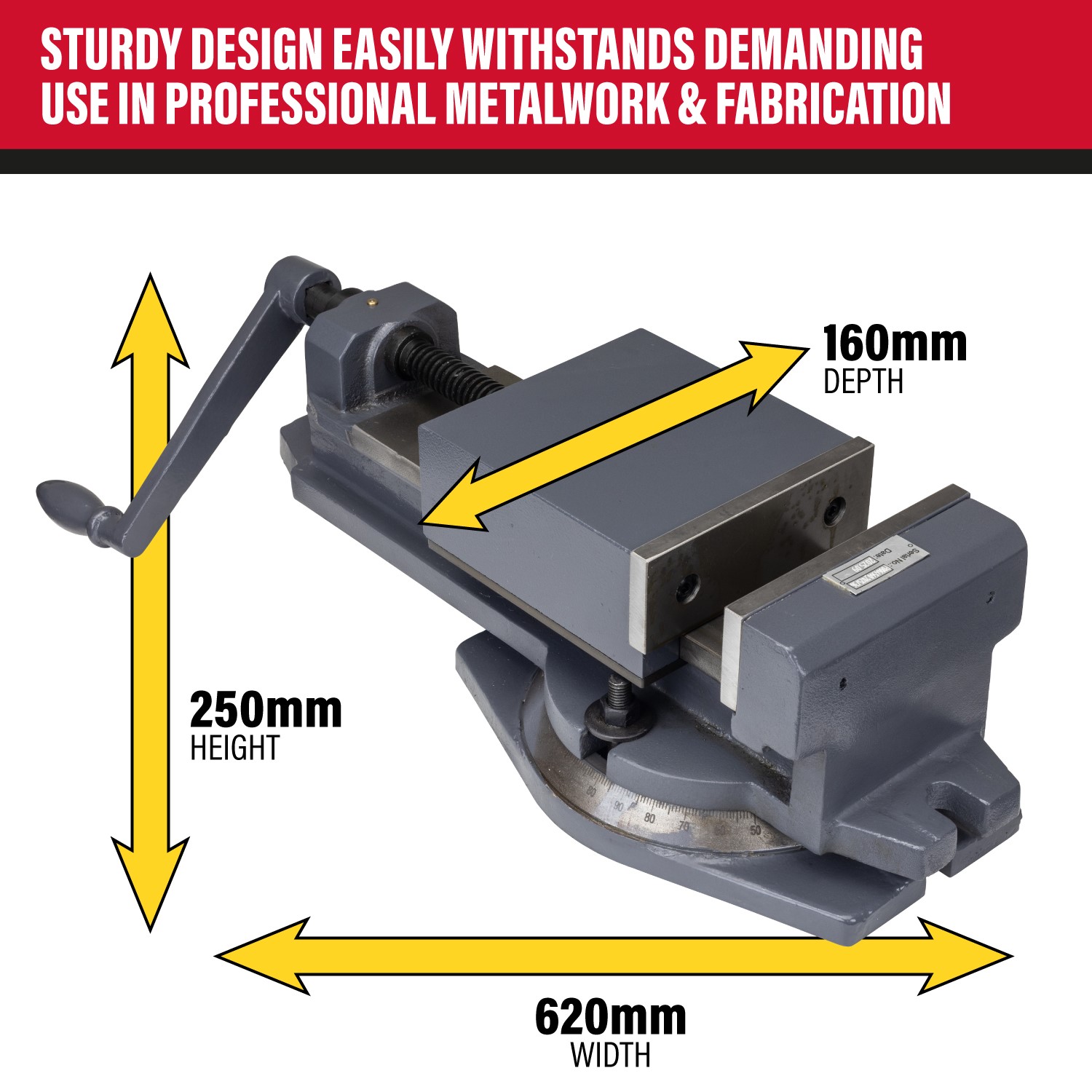

| Product Dimensions: | 250(H) x 620(W) x 160mm(D) |
| Packaged Dimensions: | 260(H) x 440(W) x 220mm(D) |
