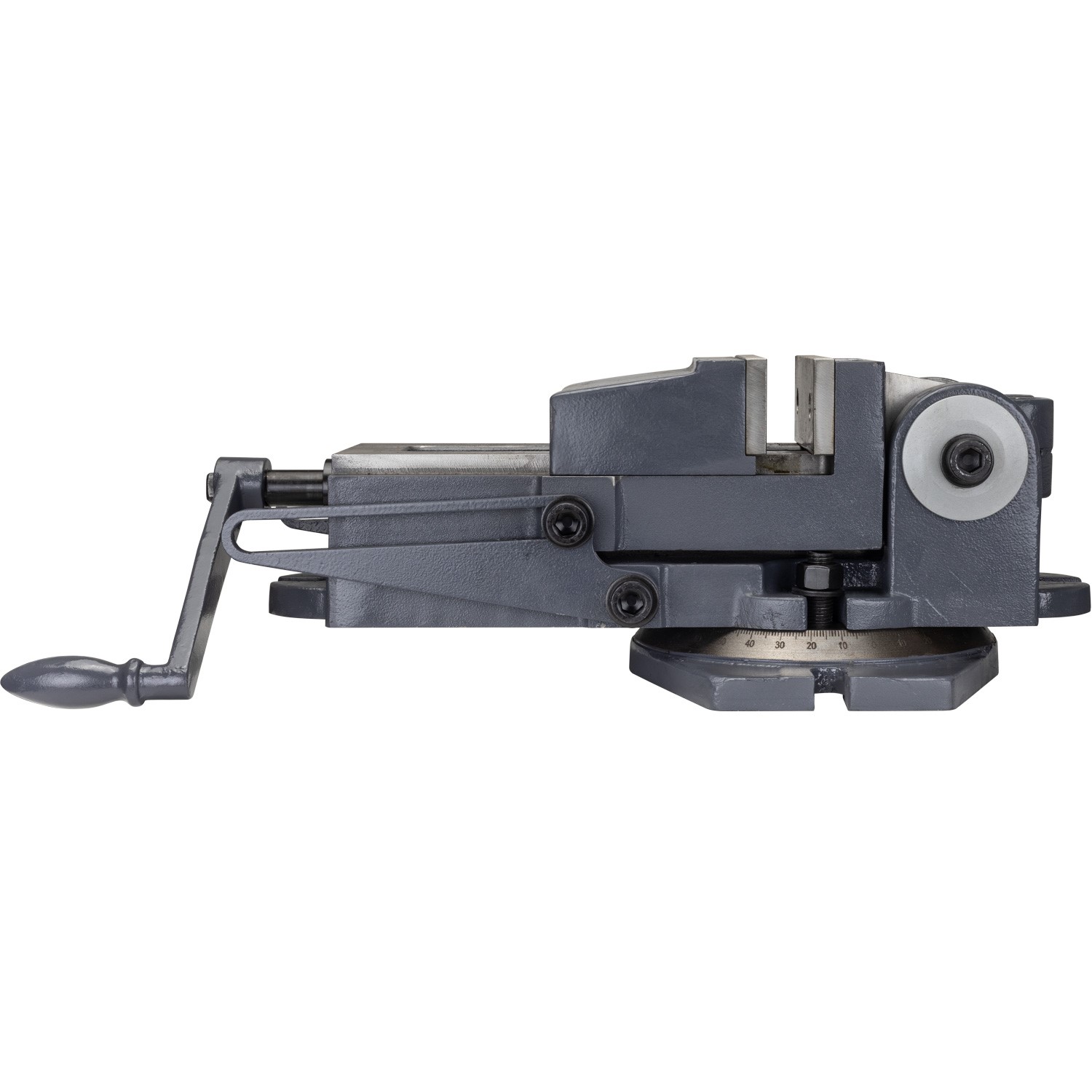

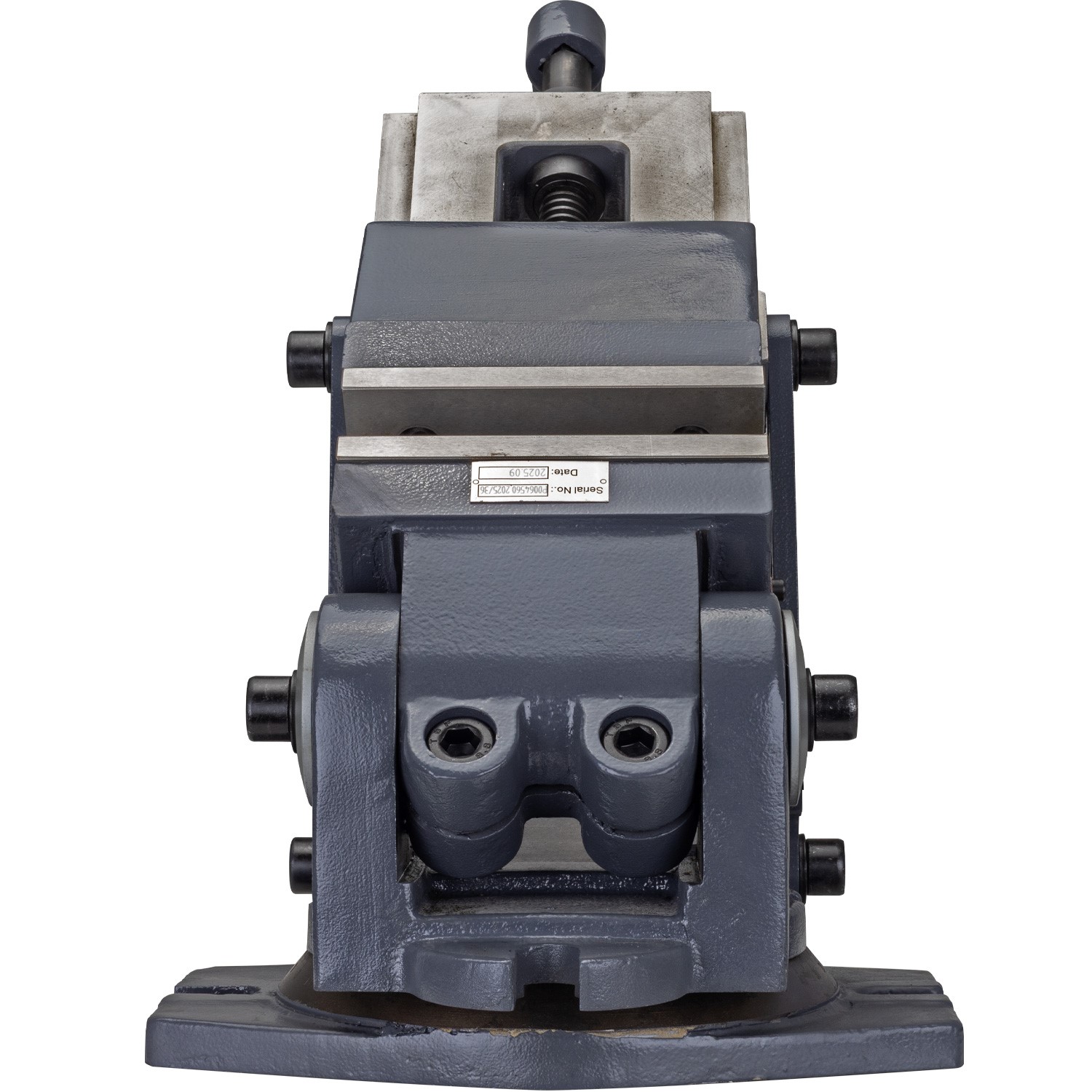

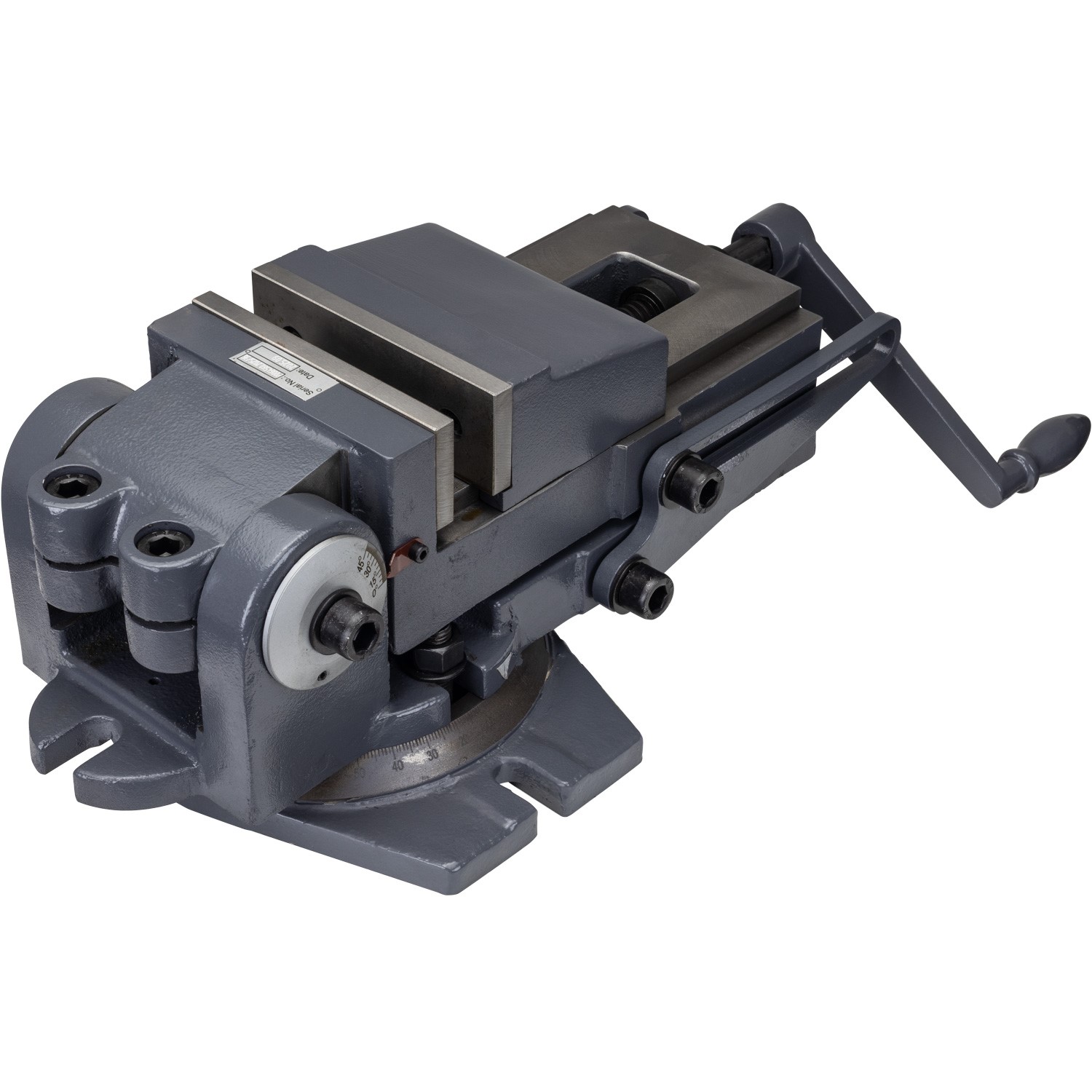

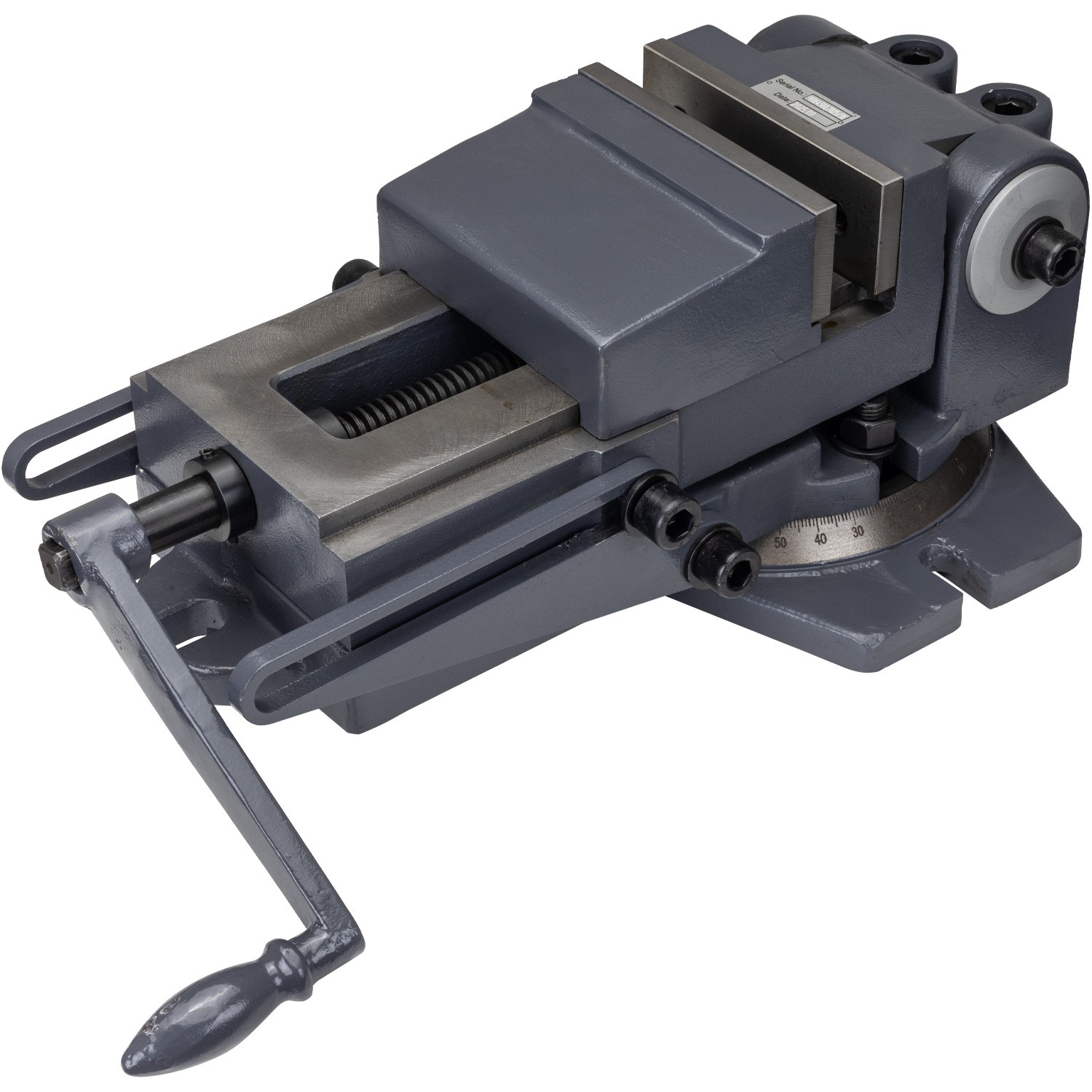

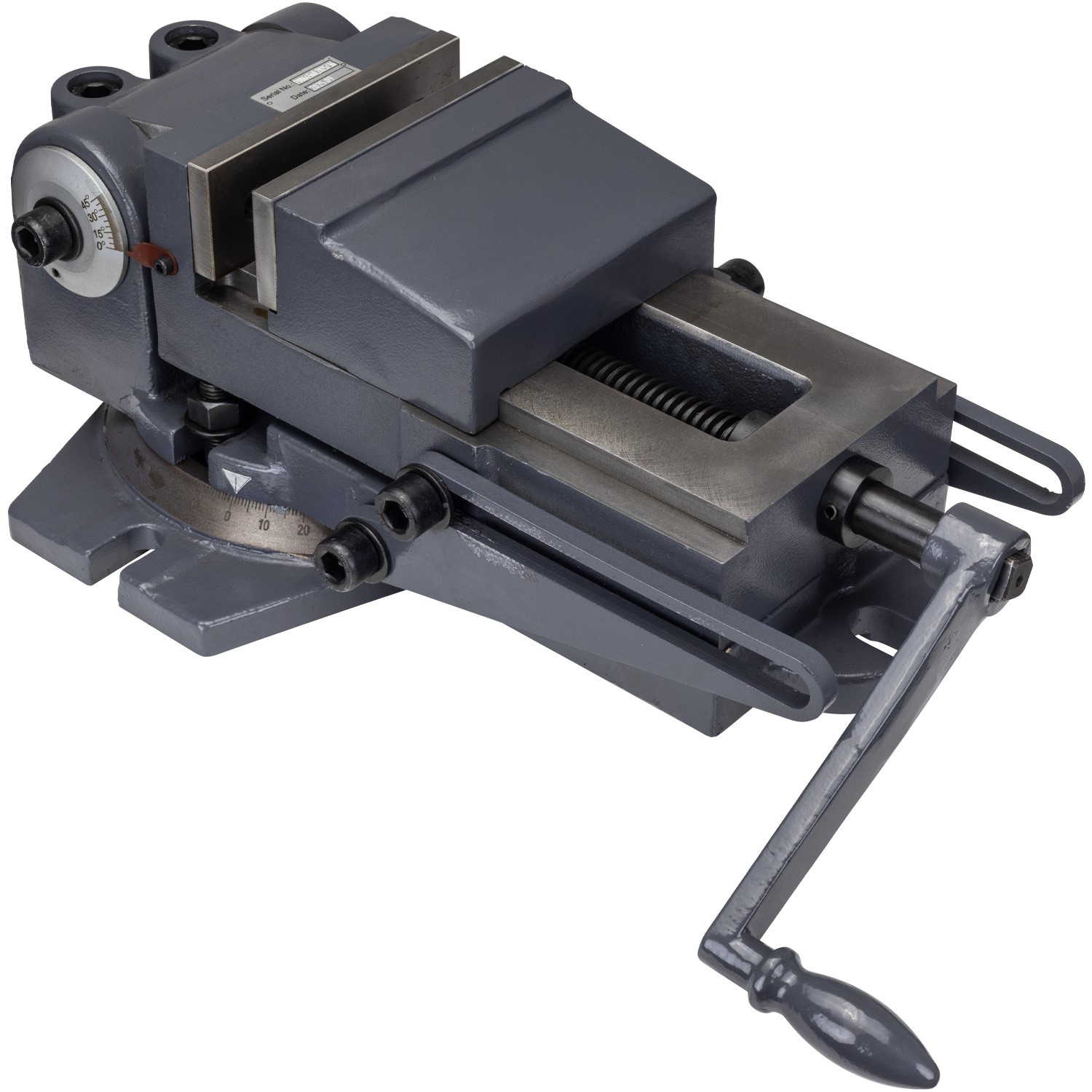

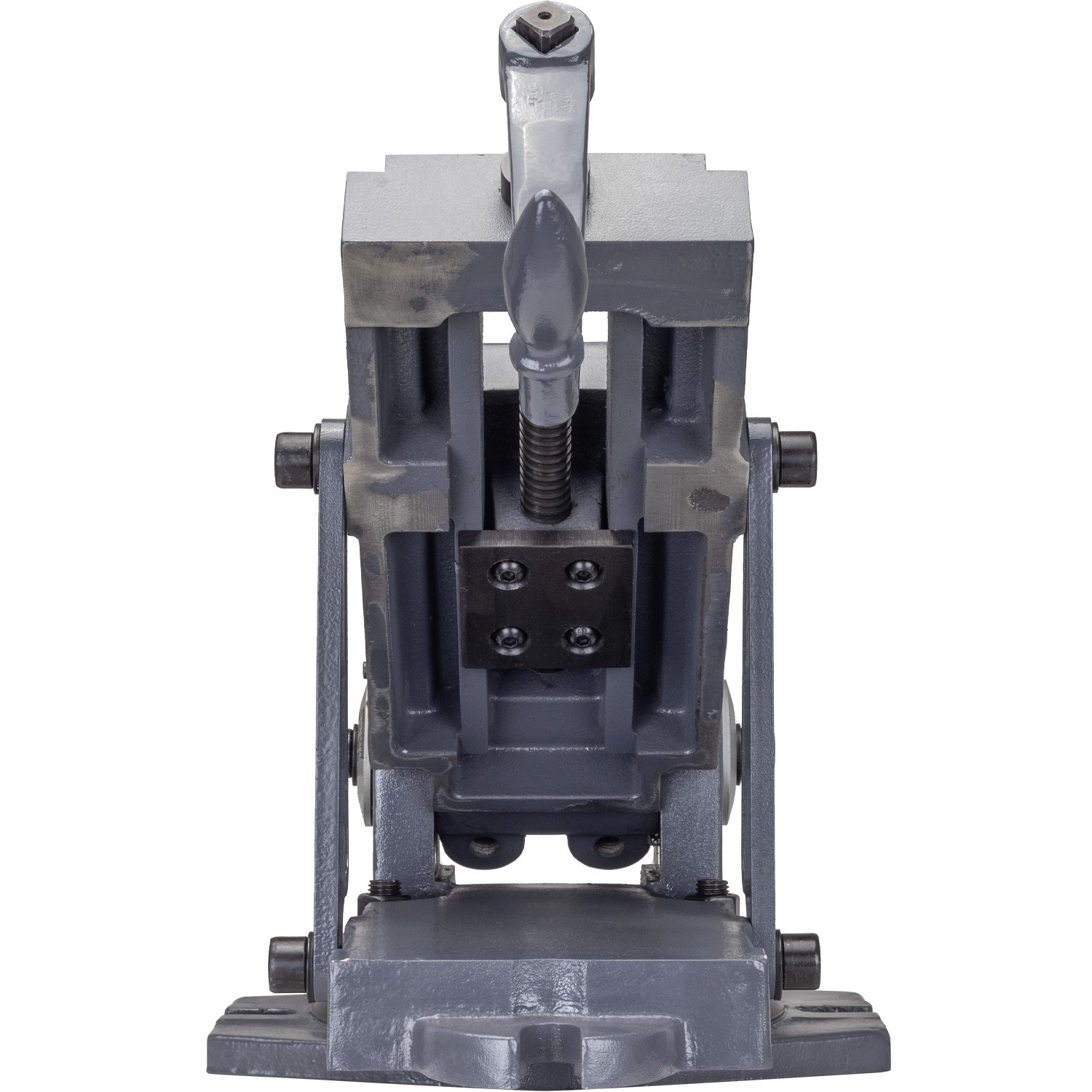

SIP 01727 6″ Swivel & Tilt Machine Vice
Original price was: £479.99.£444.99Current price is: £444.99. Inc. VAT
SKU: 01721-1BRIEF DESCRIPTION
The SIP 0727 6″ Swivel & Tilt Machine Vice enables horizontal rotation and vertical inclination for precise multi-angle machining. This helps reduce set-up time and eliminates need for additional fixtures while ensuring accuracy in complex drilling, plus improved tool access. With a swivel base that allows the operator to rotate workpieces from 0° to 360° without unclamping, and a 0° to 45° tilting mechanism for additional flexibility when machining at an angle, this vice offers maximum versatility in professional metalworking and fabrication.
Description
SIP 01727 6″ Swivel & Tilt Machine Vice
The SIP 0727 6″ Swivel & Tilt Machine Vice enables horizontal rotation and vertical inclination for precise multi-angle machining. This helps reduce set-up time and eliminates need for additional fixtures while ensuring accuracy in complex drilling, plus improved tool access.
With a swivel base that allows the operator to rotate workpieces from 0° to 360° without unclamping, and a 0° to 45° tilting mechanism for additional flexibility when machining at an angle, this vice offers maximum versatility in professional metalworking and fabrication.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
KEY FEATURES
- Heavy-duty 6″ machine vice with grey cast iron body and hardened tool steel jaws
- Designed for maximum versatility in horizontal rotation and vertical inclination
- Swivel base allows 0° to 360° rotation without unclamping the workpiece
- Tilting design offers multi-angle machining ability to reduce set-up time needed
- Angle gauges for precise set-up for accuracy in complex or repetitive machining
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
Full Specification
The SIP 6″ Swivel & Tilt Machine Vice enables horizontal rotation and vertical inclination for precise multi-angle machining. This helps reduce set-up time and eliminates need for additional fixtures while ensuring accuracy in complex drilling, plus improved tool access.
With a swivel base that allows the operator to rotate workpieces from 0° to 360° without unclamping, and a 0° to 45° tilting mechanism for additional flexibility when machining at an angle, this vice offers maximum versatility in professional metalworking and fabrication.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.
What’s in the box?: 1x SIP 6″ Swivel & Tilt Machine Vice.
HEAVY-DUTY 6″ MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS
- High-quality machine vice with 6″ jaw opening and 25kN clamping force for secure fixings of workpieces in a variety of positions.
- Built with a robust grey cast iron machine body and hardened tool steel jaws for outstanding durability and secure clamping.
- The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.
ROTATING SWIVEL BASE & VERSATILE TILTING SYSTEM FOR MAXIMUM FLEXIBILITY WHEN POSITIONING WORKPIECES

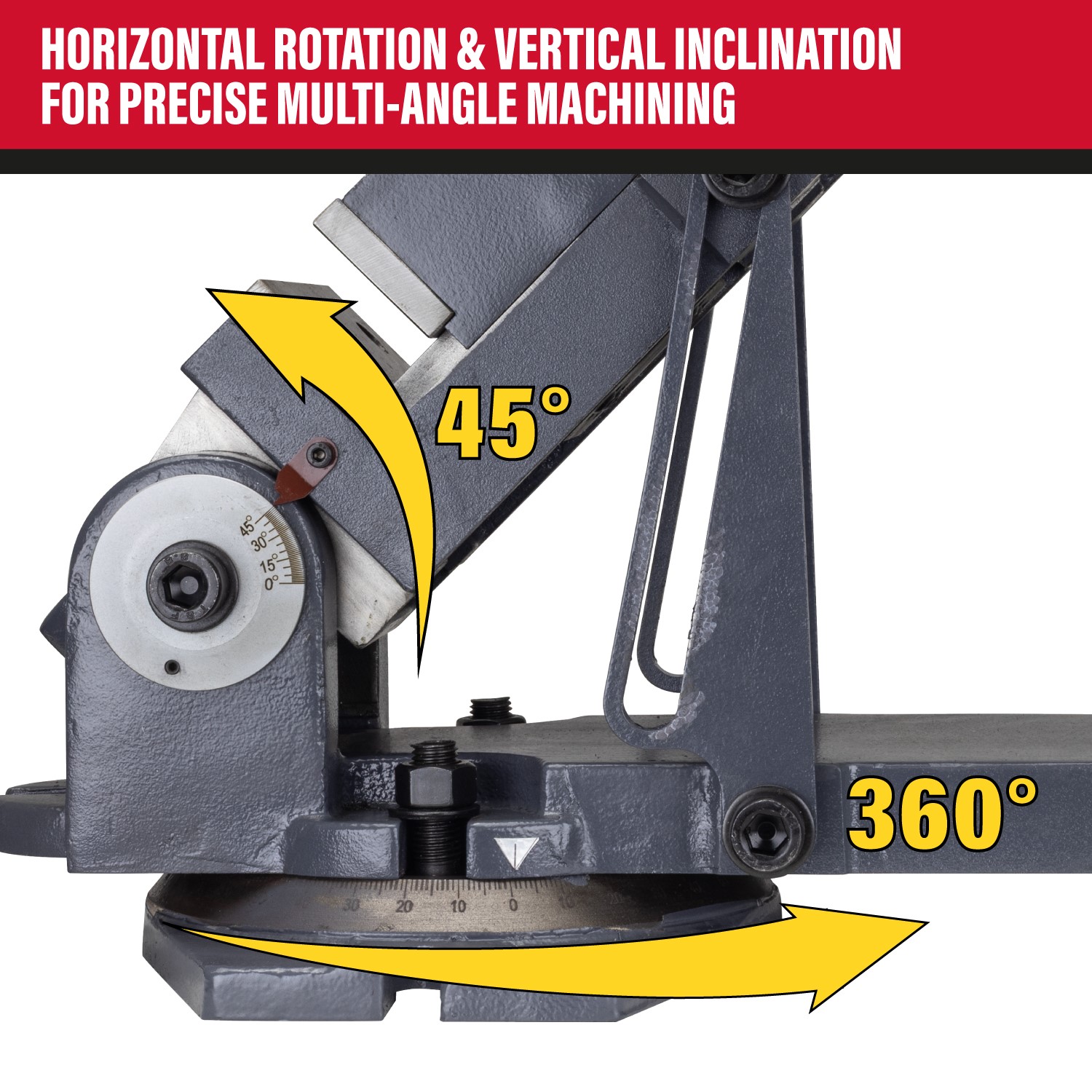

- Mounted on a durable swivel base that allows unrestricted 0° to 360° rotation of a workpiece to the desired angle without need to unclamp it.

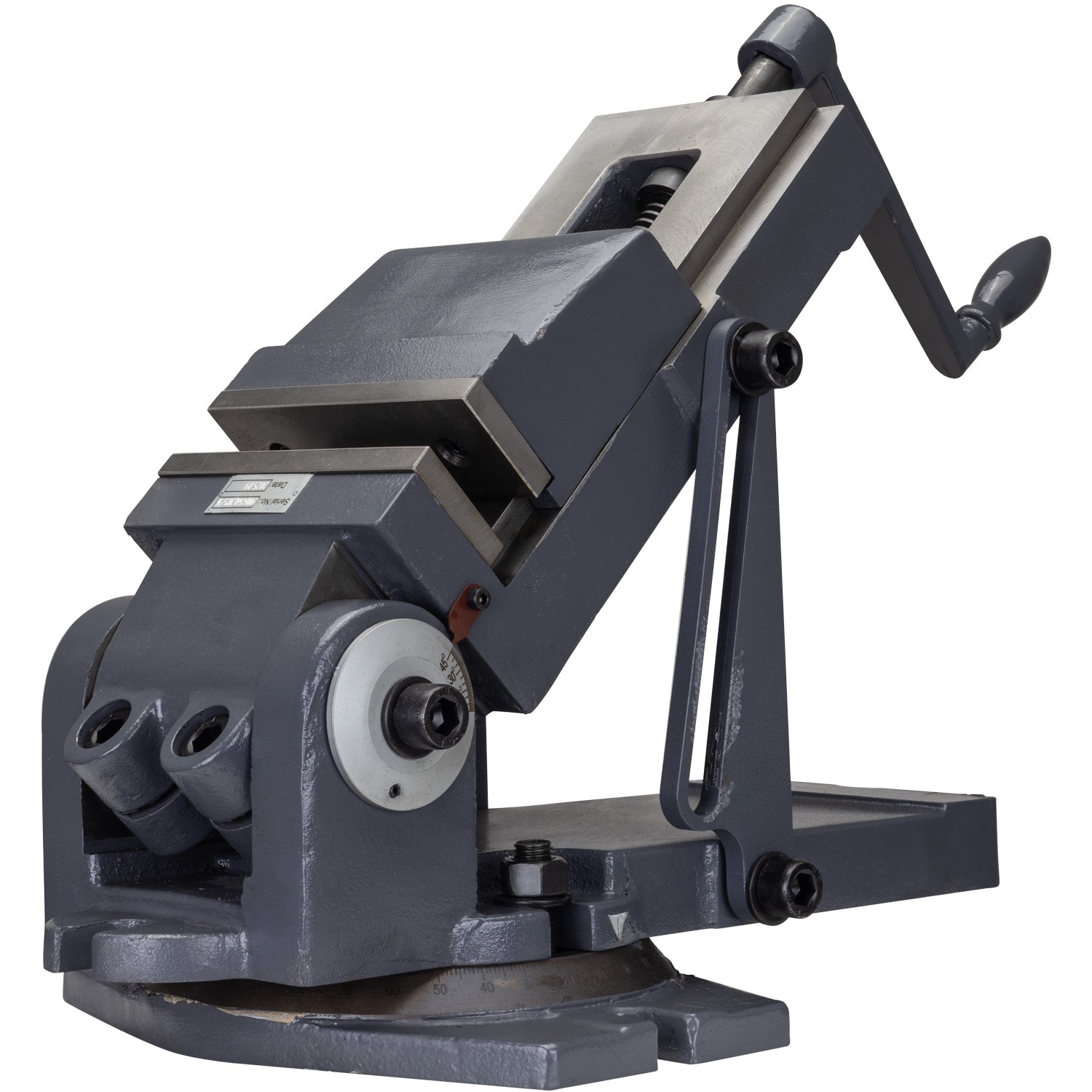

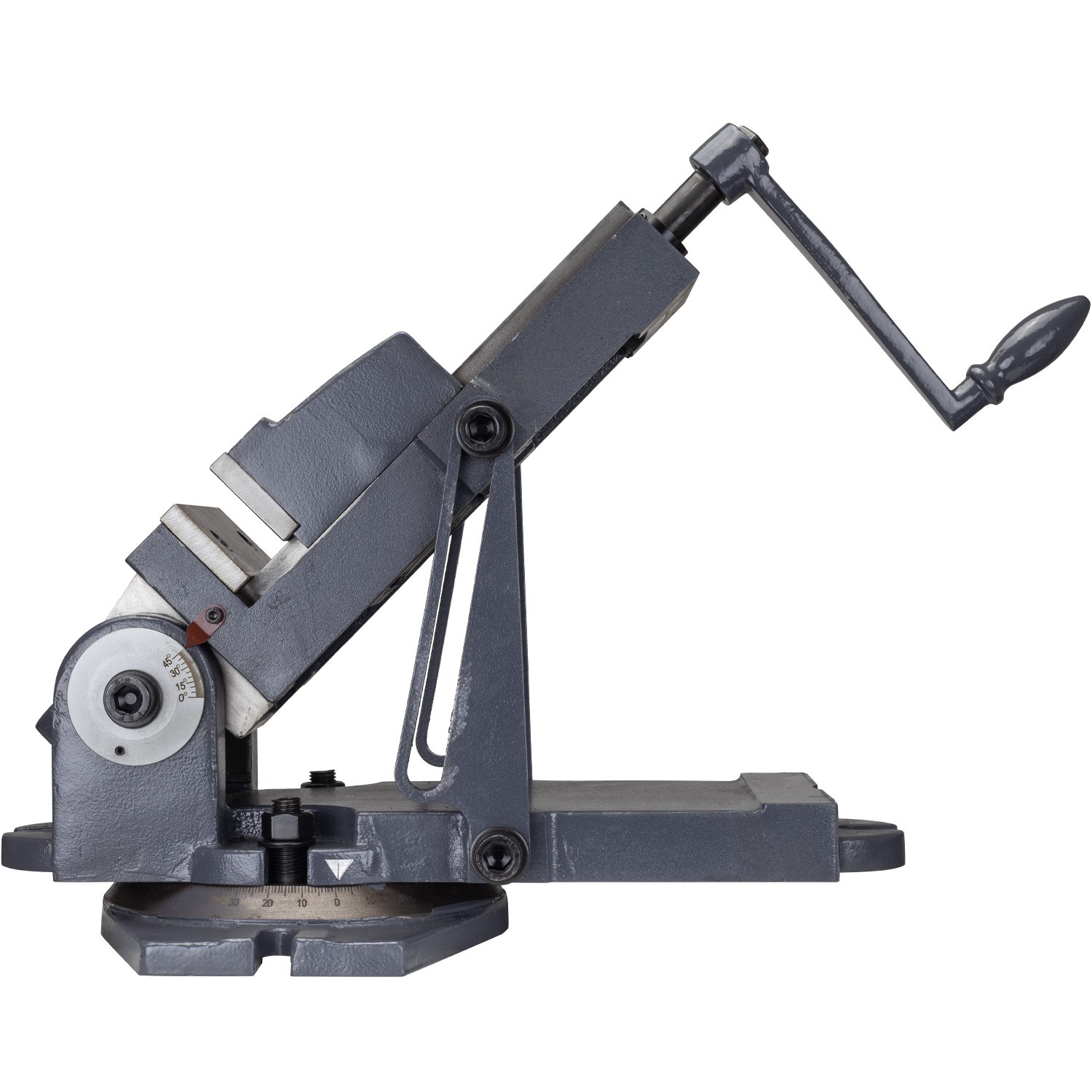

- The integrated tilting system provides 0° to 45° vertical inclination of the workpiece for drilling applications that require machining at an angle.
- These functions combined ensure high versatility and, because piece do not need to be unclamped, maintains accuracy during complex drilling.
- Specific angles can be set using the separate angle gauges built into the swivel base and the tilting platform.
COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE
-
- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill
Technical Information
| ITEM NO. | 01727 |
| Jaw Width: | 6″ (152mm) |
| Jaw Opening: | 6″ (152mm) |
| Jaw Depth: | 2″ (51mm) |
| Clamping Force: | 25kN |
| Vice Height: | 7.25″ (184mm) |
| Base Type: | Swivel and tilt |
| Base Size: | 9″ (229mm) x 11.5″ (292mm) |
| Composition: | Grey cast iron (body), hardened tool steel (jaws) |
| Mounting Hole Size: | 17mm |
| Accuracy / Parallelism: | 0.05mm / 100mm |
| Net Weight: | 52kg |
| Gross Weight: | 53kg |
| Product Dimensions: | 340(H) x 590(W) x 200mm(D) |
| Packaged Dimensions: | 260(H) x 560(W) x 210mm(D) |
