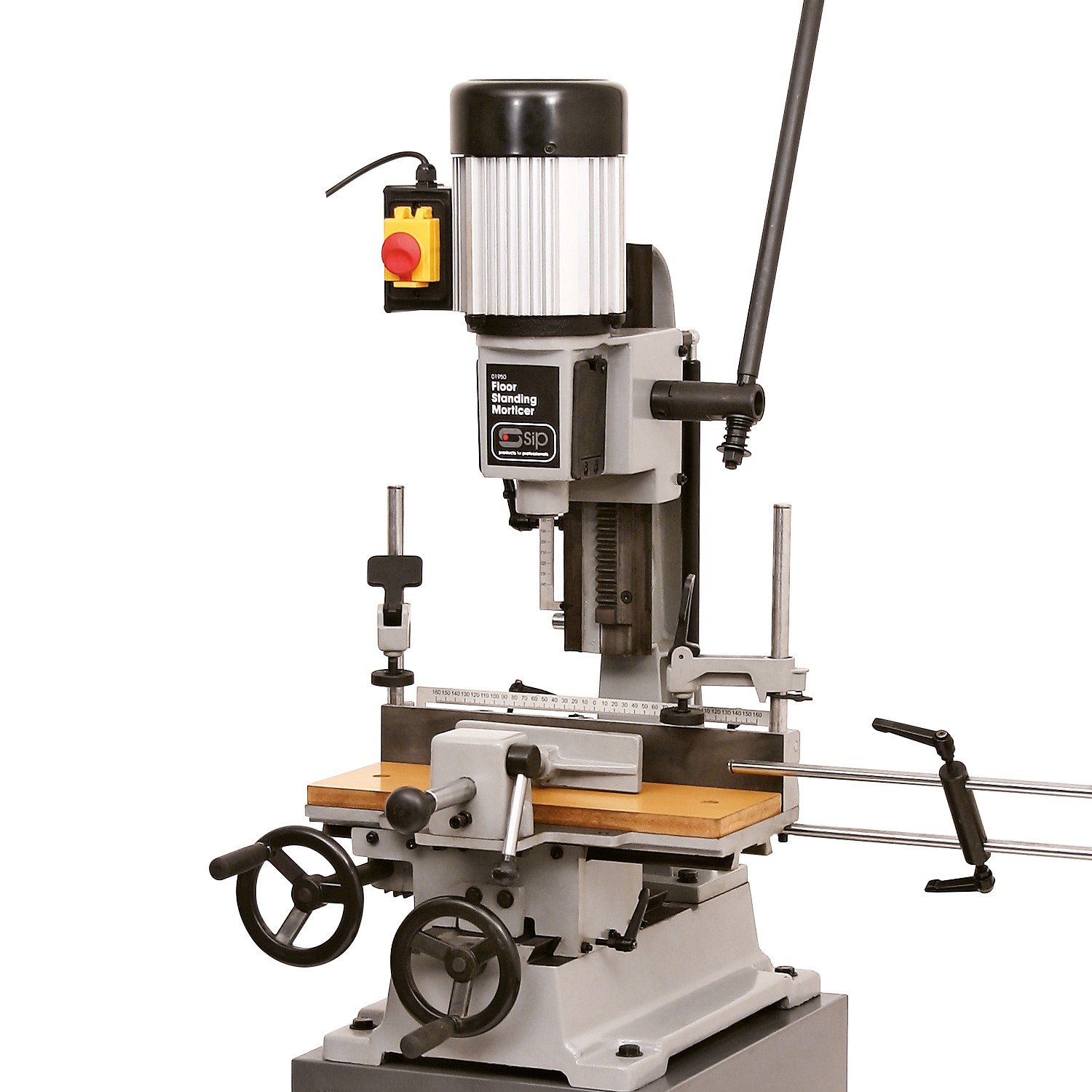

SIP 01950 Heavy Duty Morticing Machine with Cabinet stand.

£889.99 Inc. VAT

SKU: SIP01950
Free Delivery On This Item

BRIEF DESCRIPTION

SIP 01950 Heavy duty mortice machine with floor stand.

This machine has a fully adjustable compound table so if any wear occurs over a period of years you can adjust  any slack up. Comes with a 16mm chisel & bit to get you started.

It comes complete with heavy duty base stand with door and shelf to store all your chisel & bits.

SKU: SIP01950 Categories: , ,

PRODUCT VIDEO

YouTube video

Description

Two year warranty & FREE delivery on this item, plus supplied with 16mm chisel & bit.

The SIP Bench Morticer with Cabinet is a powerful woodworking tool that can be used to cut square or rectangular holes into a piece of wood for applications including joinery, and cabinet and furniture making. Also suitable for DIY and hobbyist projects.

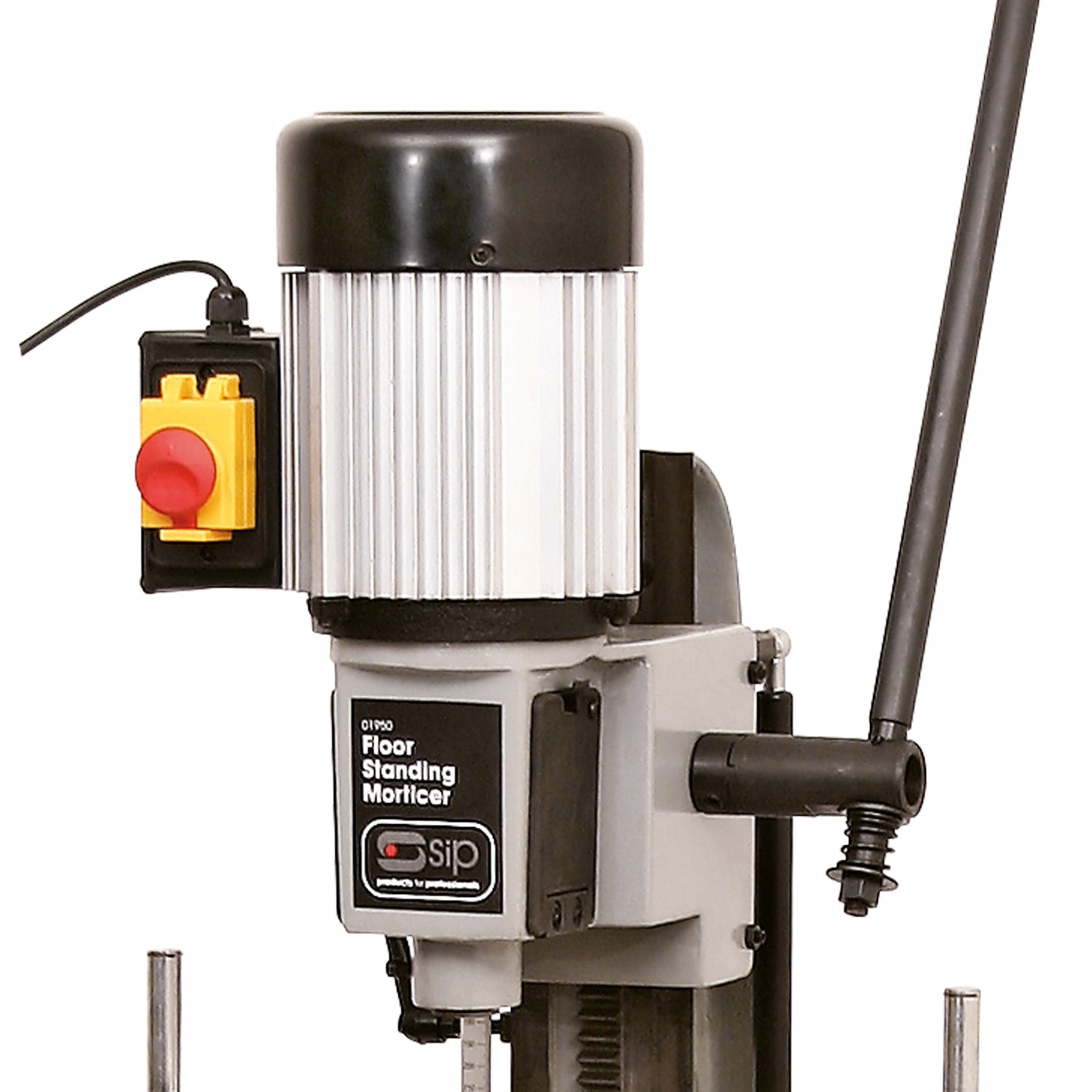

Built with a heavy-duty 1400rpm motor, this morticer can also double as a pillar drill. By changing the morticing chisel for a drill bit (3mm min. – 16mm max., not supplied), this SIP Bench Morticer provides additional woodworking capabilities.

KEY FEATURES

  • 6mm (1/4″) to 26mm (1″) chisel capacity for added flexibility
  • Versatile 210mm max. chisel stroke suitable for deep mortices
  • Heavy-duty and durable cast iron design with added storage cabinet
  • 400mm x 150mm sliding table ensures precise workpiece positioning
  • Large work area ideal for larger or irregular workpiece timber
  • Integrated NVR switch for increased operator safety

  SIP 2-Year Standard Silver Warranty

Full Specification

The SIP Bench Morticer with Cabinet can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a floor-standing pillar drill, and utilises a heavy-duty clamp that helps to keep workpieces secure even in the most demanding tasks.

  • 6mm (1/4″) to 26mm (1″) chisel capacity
  • Supplied with a 16mm chisel & bit.
  • 210mm max. chisel stroke; 210mm chisel to table

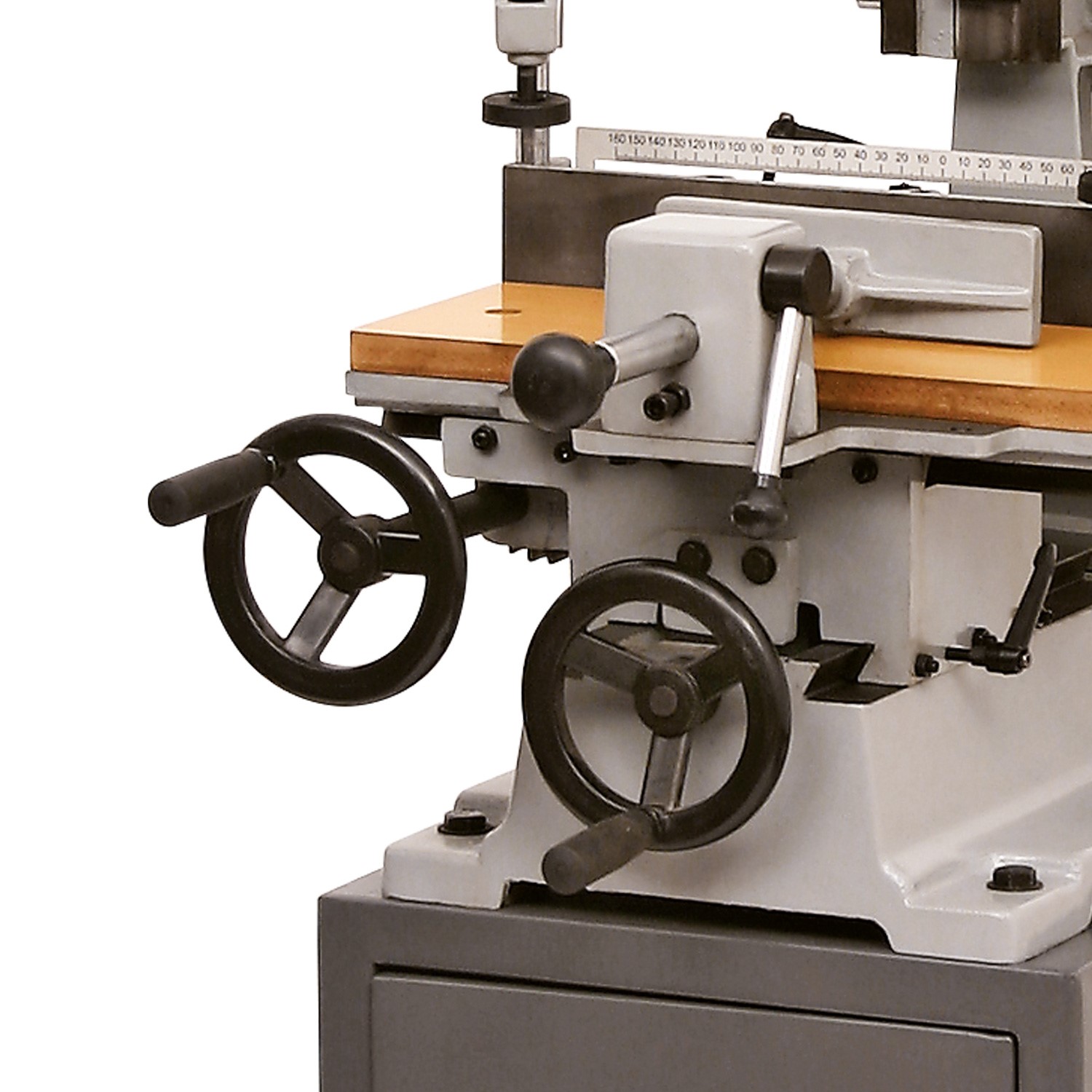

  • Versatile longitudinal and lateral table movement

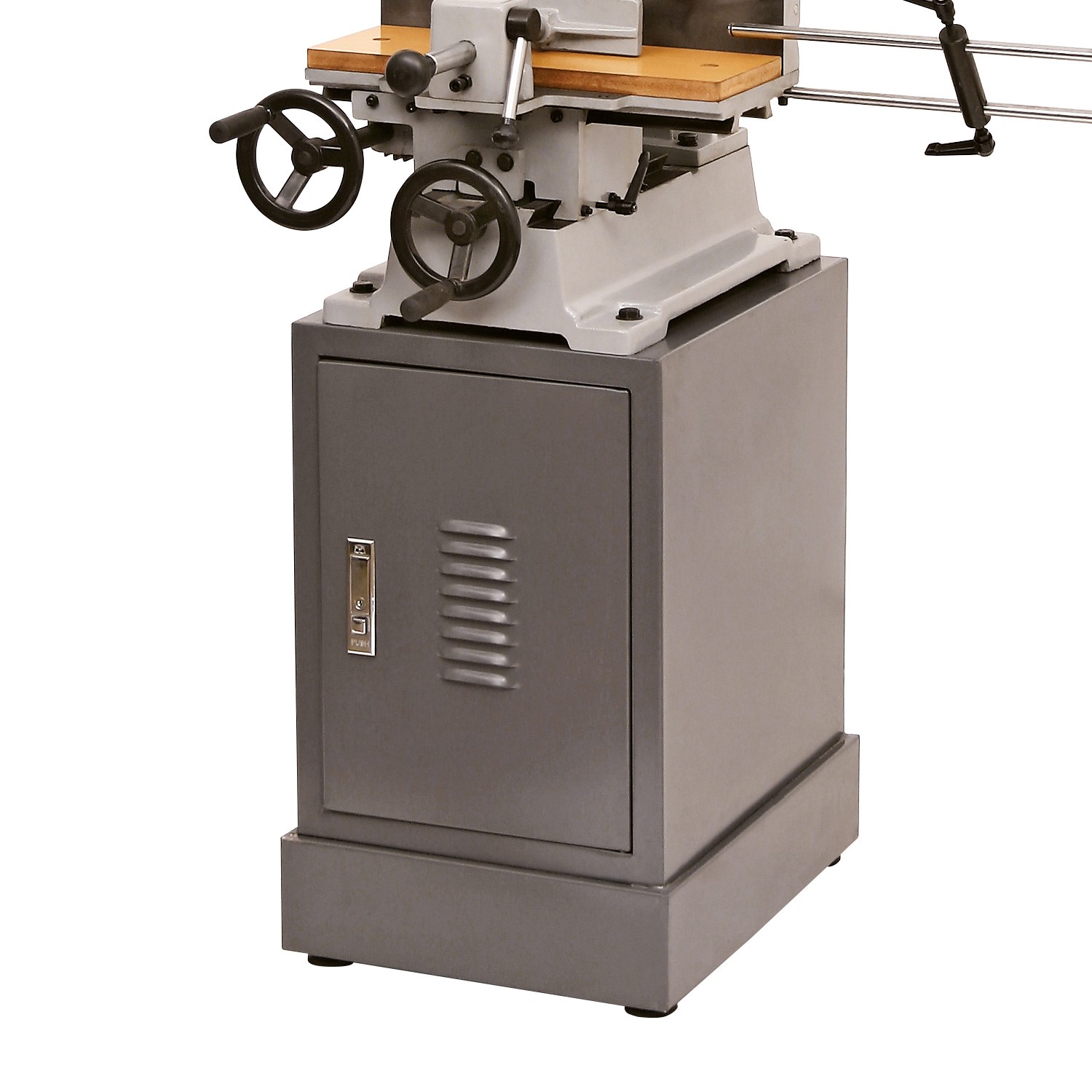

  • Heavy-duty cabinet for a comfortable work height
  • 400mm x 150mm table size for larger workpieces
  • Built from heavy-duty cast iron for durability
  • Design doubles as a floor-standing pillar drill
  • Heavy-duty clamps keeps the workpiece secure
  • Large work area for bigger or irregular timber
  • Integrated NVR switch for increased safety
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 01950
Input Supply: 230v (13A)
Motor Power: 750w (1hp)
Morticing Capacity: 6mm – 26mm (1/4″ – 1″)
Max. Chisel Stroke: 210mm
Max. Spindle to Fence: 140mm
Max. Drilling Capacity: 70mm
Chuck Capacity: 16mm
Work Table Size: 400mm x 150mm
Net Weight: 73.00kg
16.00kg
Gross Weight: 83.00kg
18.00kg
Product Dimensions:
Packaged Dimensions: 815(H) x 560(W) x 470mm(D)
630(H) x 500(W) x 395mm(D)
