SIP 03556 CHARGESTAR D40 Digital Battery Charger

The SIP 03556 CHARGESTAR D40 Digital Battery Charger is a powerful and portable digital battery charger designed for charging all types of 12v and 24v lead acid batteries.

Featuring an intelligent microprocessor with 8-step automatic charging cycle, the CHARGESTAR D40 makes battery charging easier, faster and safer.

KEY FEATURES

• 12v/24v dual voltage charging output
• Charging capacity of up to 550Ah max. rated
• Microprocessor-controlled automatic 8-step charging cycle
• Battery low voltage detector >3v
• LED display screen and intuitive soft touch control panel
• Compact and lightweight design with carry handle


  Full Specification

  The SIP CHARGESTAR D40 Digital Battery Charger is a powerful and portable digital battery charger designed for charging all types of 12v and 24v lead acid batteries.

  Featuring an intelligent microprocessor with 8-step automatic charging cycle, the CHARGESTAR D40 makes battery charging easier, faster and safer.

  Applications & uses: Ideal for battery charging applications in automotive and workshop environments. Suitable for charging commercial vehicle batteries.

  SIP 2-Year Standard Silver Warranty

  Versatile battery charger suitable for a variety of 12v and 24v lead acid batteries
  This includes WET, MF, EFB, AGM and CaCa battery types.

  Charging capacity of up to 550Ah for 12v and 300Ah for 24v.

  Microprocessor-controlled charger maintains healthy long-life battery performance
  An intelligent 8-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.

  Once battery capacity is full, the unit stops charging and a control panel light is displayed.

  If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.

  ‘Altn Check’ mode indicates alternator health and performance (12v vehicles only).

  ‘Boost – Fast Charge’ mode delivers 5mins of continuous 40A charge.

  The unit stops charging once the battery capacity is full.

  Supplied with 2x 2mtr leads and clip clamps.

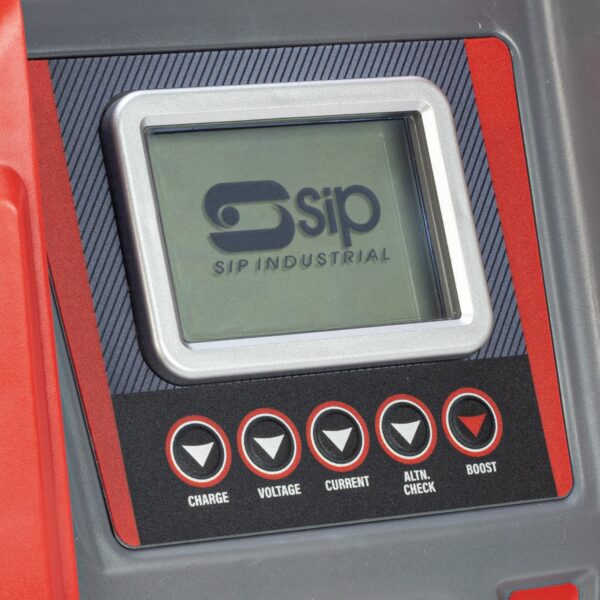

  LCD screen and intuitive soft touch control panel.

  Lightweight design with carry handle for easy movement between use.

  Built-in safety and protection features maximise user safety
  Anti-spark system prevents sparks when connecting the clips to the battery terminals.

  Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.

  Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

  Technical Information

  ITEM NO.	03556
  Input Supply:	220v – 240v 50-60Hz, 750w max.
  Input Fuse:	10A
  Charging Voltage:	12v DC / 24v DC
  Charging Current:	2A / 10A / 20A / 40A @ 12v 5A / 10A / 20A @ 24v
  Battery Low Voltage Detector:	>3v
  Charging Steps:	8; Fully Automatic Charging Cycle
  Battery Types:	All 12v/24v Lead Acid (WET, MF, EFB, GEL, AGM)
  Battery Capacity:	550Ah (12v) / 300Ah (24v)
  Temperature Range:	0°C – 40°C
  Protection Level:	IP20
  Net Weight:	3.70kg
  Gross Weight:	4.10kg
  Product Dimensions:	320(H) x 290(W) x 170mm(D)
  Packaged Dimensions:	329(H) x 292(W) x 190mm(D)
