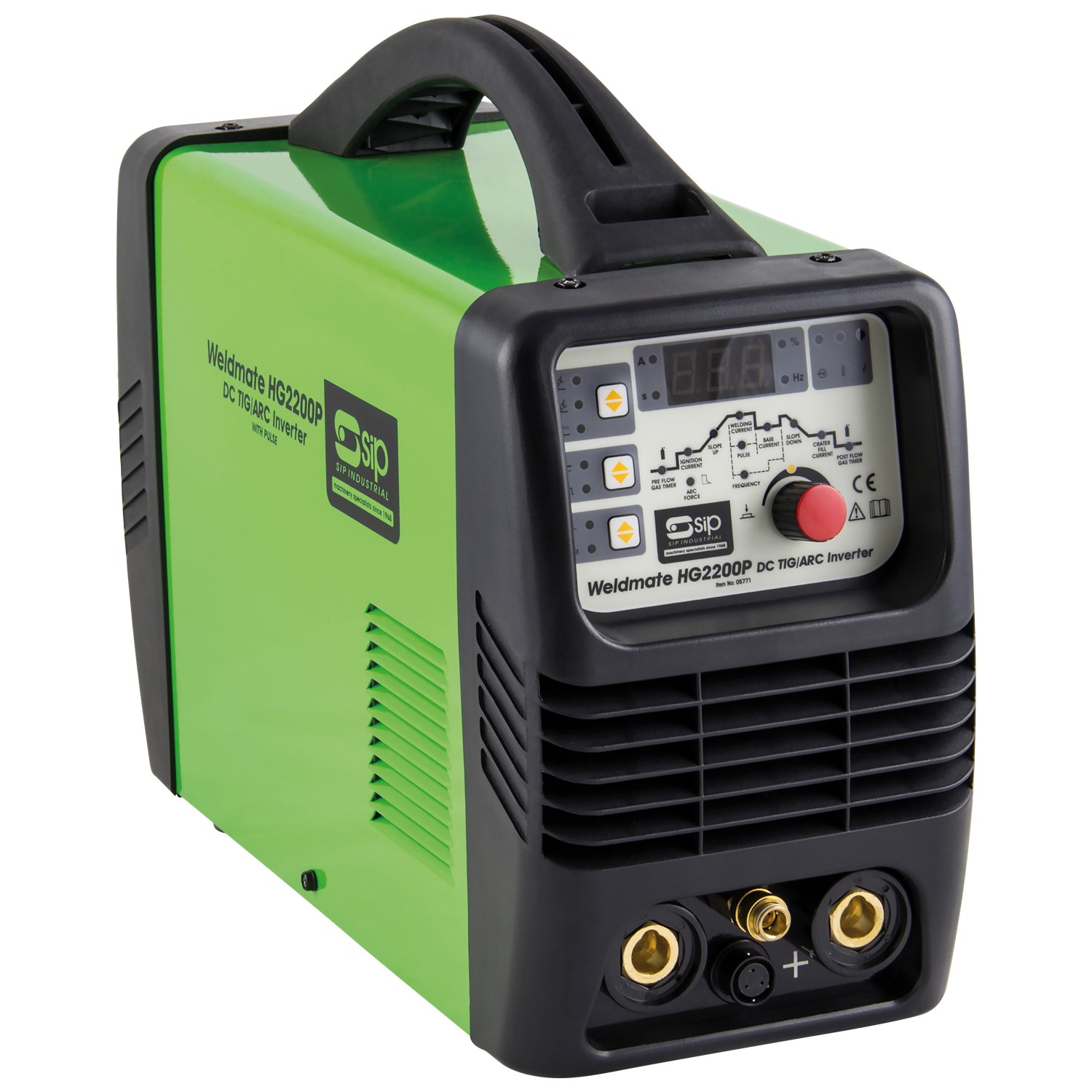

SIP 05771 HG2200P TIG/ARC Inverter Welder 16amp
£427.99 Inc. VAT
SKU: 05771BRIEF DESCRIPTION
The SIP 05771 HG2200P TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed with a TIG Pulse facility which provides easier precision welding across a variety of applications and a 9-stage parameter adjustment program.
Description
The SIP 05771 HG2200P TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed with a TIG Pulse facility which provides easier precision welding across a variety of applications and a 9-stage parameter adjustment program.
KEY FEATURES
- DC TIG/ARC output current and high duty cycles
- TIG Pulse facility designed for easier precision welds
- 9-stage parameter adjustment helps suit requirements
- Lightweight and compact design for high portability
- Low current output ideal for welding thin material
Full Specification
The SIP HG2200P TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed with a TIG Pulse facility which provides easier precision welding across a variety of applications and a 9-stage parameter adjustment program.
- Ø 1.6mm to Ø 4mm electrode diameter
- DC TIG/ARC output current and high duty cycles
- Designed with the latest IGBT inverter technology platform
- Multi-functional; HF TIG, Lift ARC & TIG, and MMA/ARC processes
- Integrated TIG Pulse facility provides considerably easier precision welds
- 9-stage parameter adjustment including slope-up, slope-down, pre/post flow, crater fill and more to customise the set-up dependent on task requirements
- Lightweight and compact design for easy portability in all applications
- Low current output which is ideal for welding thinner materials
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. | 05771 |
| Input Supply: | 230v (16A) |
| Output Current: | 5A – 200A (TIG) 20A – 200A (ARC) |
| Output Voltage: | 10.2v – 18v (TIG) 20.8v – 28v (ARC) |
| Duty Cycle: | 200A @ 60% (TIG) 200A @ 60% (ARC) |
| Electrode Diameter: | Ø 1.6mm – 4mm |
| Protection Level: | IP21S |
| Insulation Class: | Class H |
| Net Weight: | 6.52kg |
| Gross Weight: | 8.37kg |
| Product Dimensions: | 220(H) x 300(W) x 450mm(D) |
| Packaged DImensions: | 480(H) x 480(W) x 380mm(D) |
